FEATURES
- Normal Open Micro relay, 12V, 20 Amp relay, 4 pole relay, Resistor
- Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 100.000 switching cycles
- Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
- Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance.
DESCRIPTION

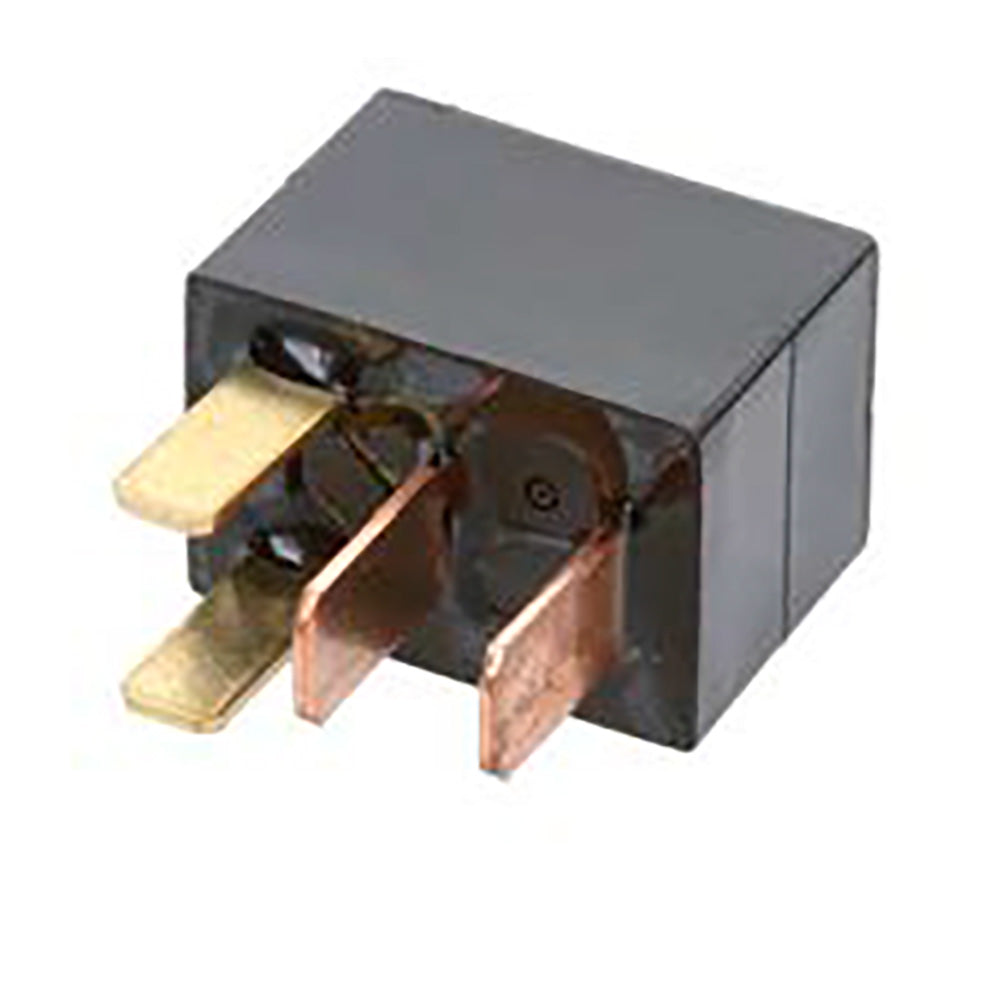

Bosch 0986AH0092 Normal Open Micro Relay, 4 Pins, 12V, 20A, Resistor
SPECIFICATIONS
| Type | Normal Open |
| Mounting Bracket | N/A |
| Resistor | Yes |
| Diode | N/A |
| Life durability | 100.000 |
| Current | 20 Amps |
| Voltage | 12 V |
| Number of Pins | 4 |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +85 °C |
OE NUMBER
HONDA: 39794SDAA05, 39794SDAA03
TOYOTA: 9098702027, 90987T2001, 2830021020, 283000L010, 9098702028, 9098702020, 9098702022, 2830028010
MITSUBISHI: MR588567
APPLICATION SUMMARY
Acura MDX (2009 - 2012)
Acura RDX (2009 - 2012)
Acura RL (2005 - 2010)
Acura RLX (2014 - 2018)
Acura TL (2009 - 2012)
Acura TSX 2010
Acura ZDX 2010
Honda Accord (2008 - 2012)
Honda Accord Crosstour 2010 - 2011
Honda Civic (2010 - 2012)
Honda Clarity 2017
Honda CR-V (2010 - 2012)
Honda CR-Z (2011 - 2012)
Honda Crosstour (2010-2012)
Honda Fit (2010 - 2012)
Honda Odyssey (2011 - 2012)
Honda Pilot (2010 - 2012)
Honda Ridgeline (2010 - 2012)
