FEATURES

  • Normal Open Micro Relay, 4 Pins, 12V, 30A, Diode
  • Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 100.000 switching cycles
  • Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
  • Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance.



DESCRIPTION

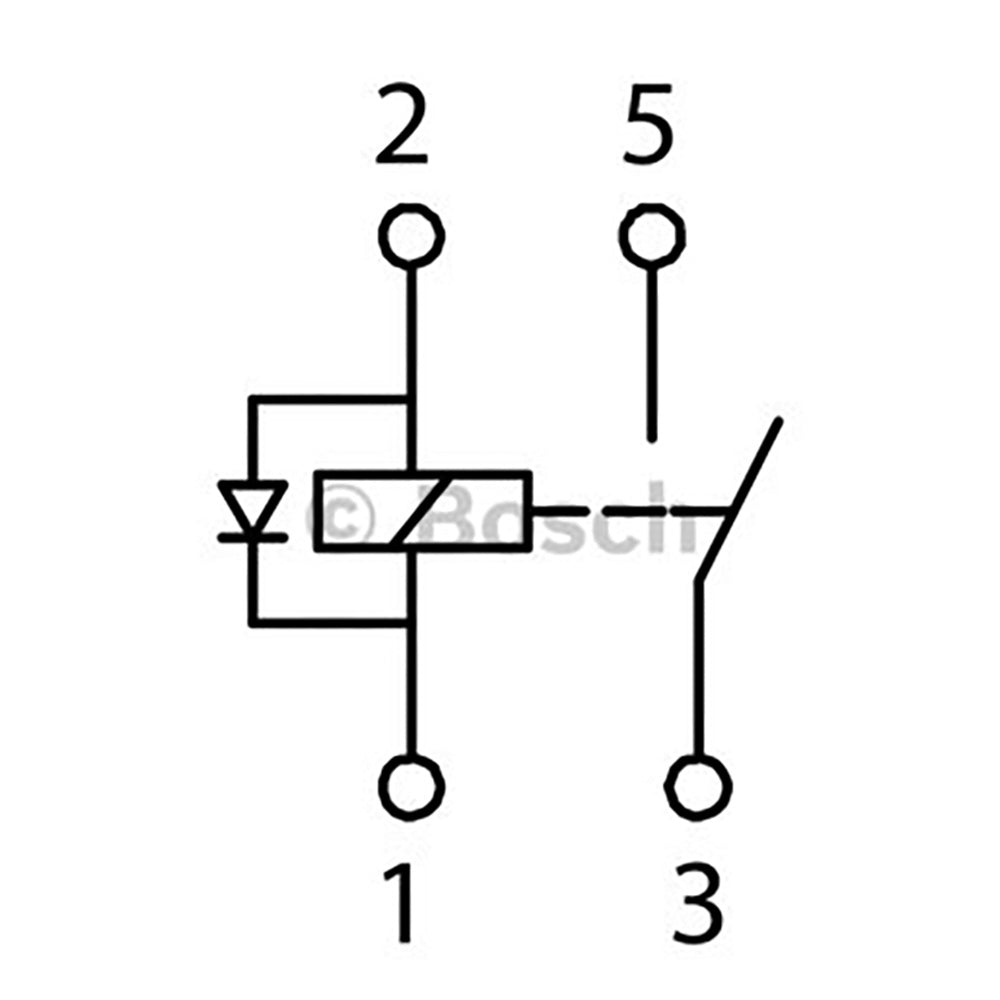

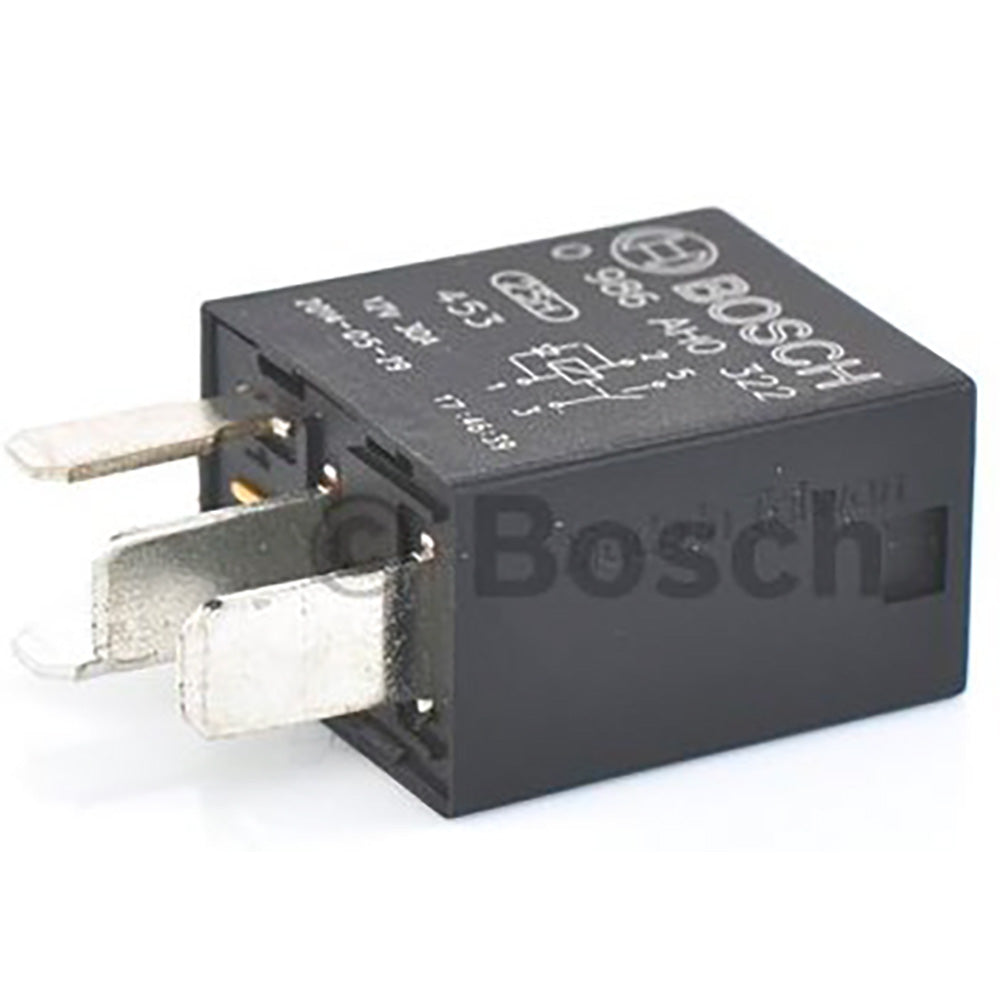

Bosch 0986AH0322 Normal Open Micro Relay, 4 Pins, 12V, 30A, Diode

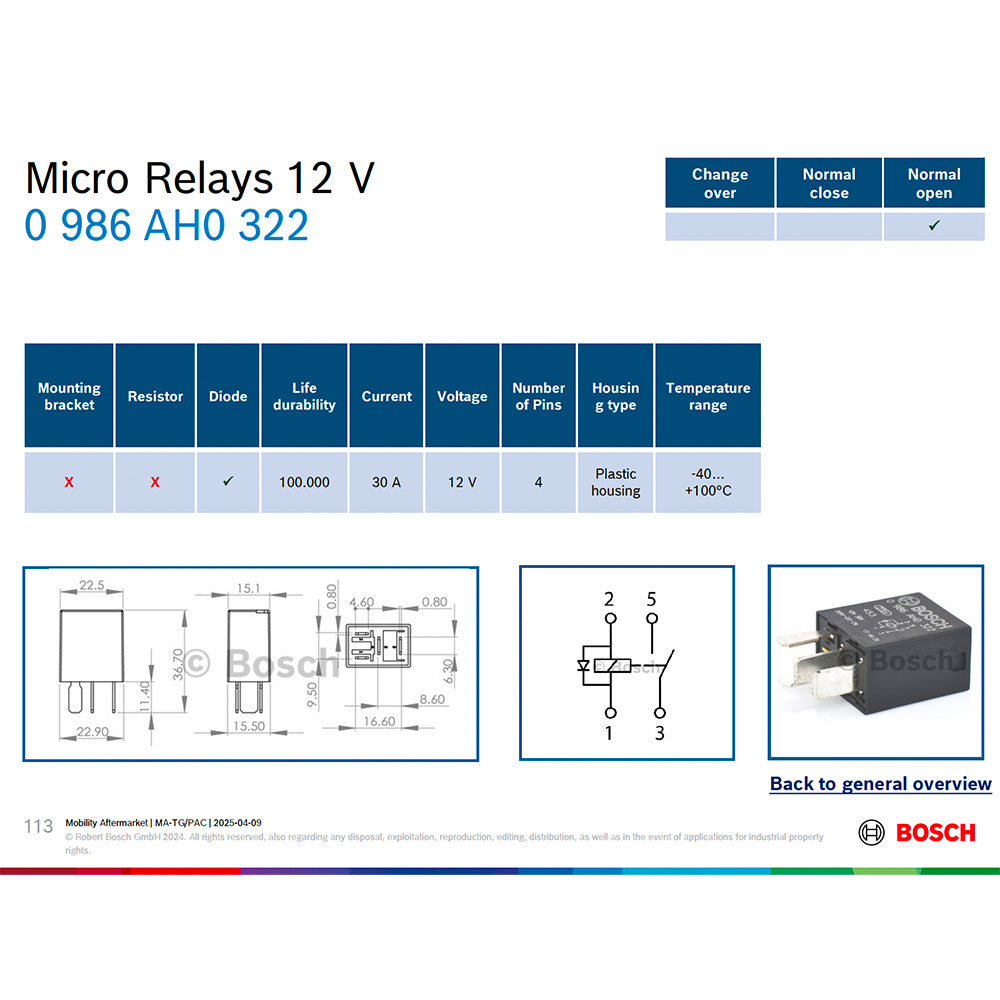

SPECIFICATIONS

Type Normal Open
Mounting Bracket N/A
Resistor N/A
Diode N/A
Life durability 100.000
Current 30A Amps
Voltage 12 V
Number of Pins 4
Housing Plastic Housing
Temp Range -40 ~ +100 °C



OE NUMBER

HYUNDAI: 9522429800, 9522429850, 952242D000, 952242D700, 952243E500, 952302P020

KIA: 9522429850, 952242D000

TOYOTA: 9098702012
