Bosch 0986AH0614 Change Over Mini Relay, 5 Pins, 12V, 20/10A, Diode

Bosch 0986AH0614 Change Over Mini Relay, 5 Pins, 12V, 20/10A, Diode

~~$9.99~~ $6.99

FREE delivery available*

- Add To Wishlist

SKU: BSH-0986AH0614 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

FEATURES

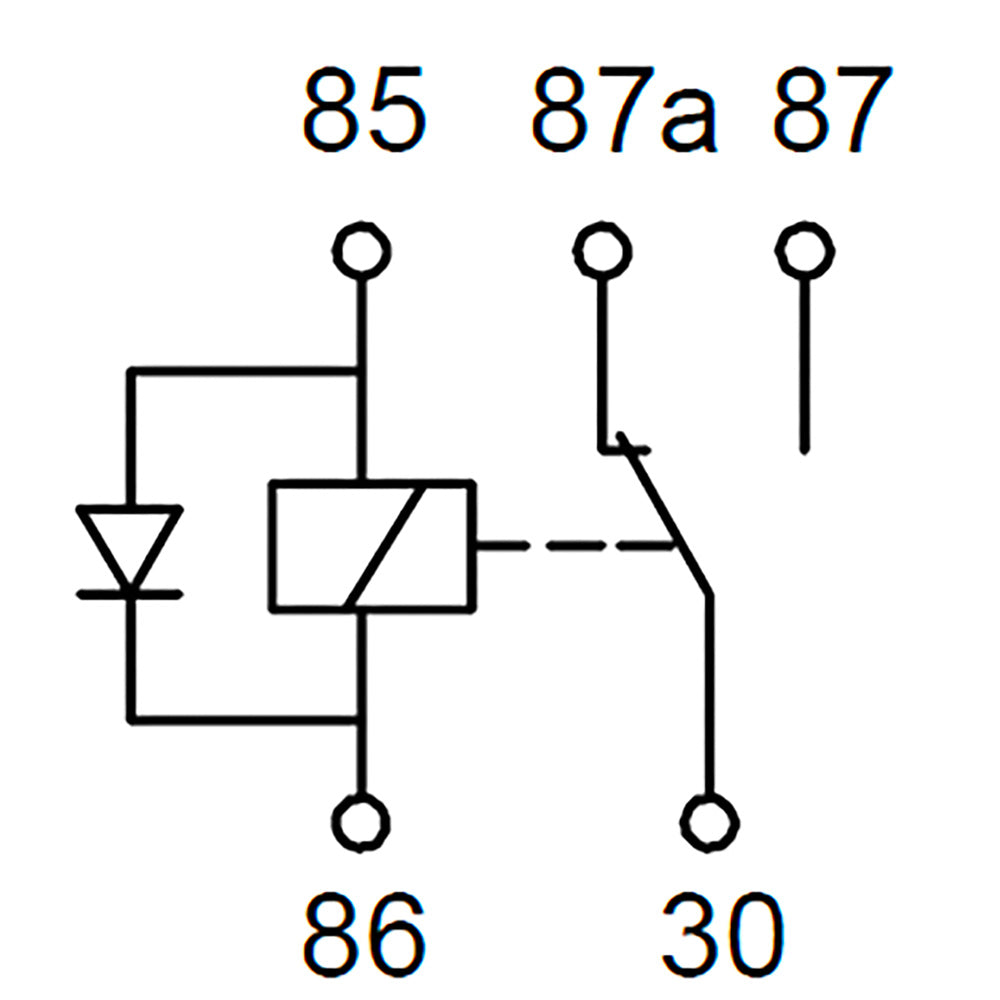

Change Over Mini Relay, 5 Pins, 12V, 20/10A, Diode
Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 100.000 switching cycles
Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance.

DESCRIPTION

Bosch 0986AH0614 Change Over Mini Relay, 5 Pins, 12V, 20/10A, Diode

SPECIFICATIONS

Type	Change Over
Mounting Bracket	N/A
Resistor	N/A
Diode	Yes
Life durability	100.000
Current	20/10 Amps
Voltage	12 V
Number of Pins	5
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
