Bosch 0332002159 Normal Open Power Relays, 12 V, 100 A, 4 Contacts, Resistor

FEATURES

• Alternative upgrade option for 0332002156, 0332002168
• limiting continuous current 100 A at 85 °C
• heat, moisture, and vibration resistant
• minimal contact resistance

• IP54 Protection with coil connected

DESCRIPTION

Bosch has been producing relays for vehicles and other applications for more than 40 years - this vast development experience ensures continuous advancement in design features to deliver optimum performance.

Bosch Power Relays feature a robust design and enhanced capability to perform switching operations in high demand applications like engines, starters, and other large products. Bosch relays incorporate only the highest quality materials for superior performance and a 100,000 switching cycle capability. Superior engineering provides vibration, shock, and high temperature resistance that ensures enhanced reliability and a long service life. 12V, 100A. Integral bracket mount. Black.

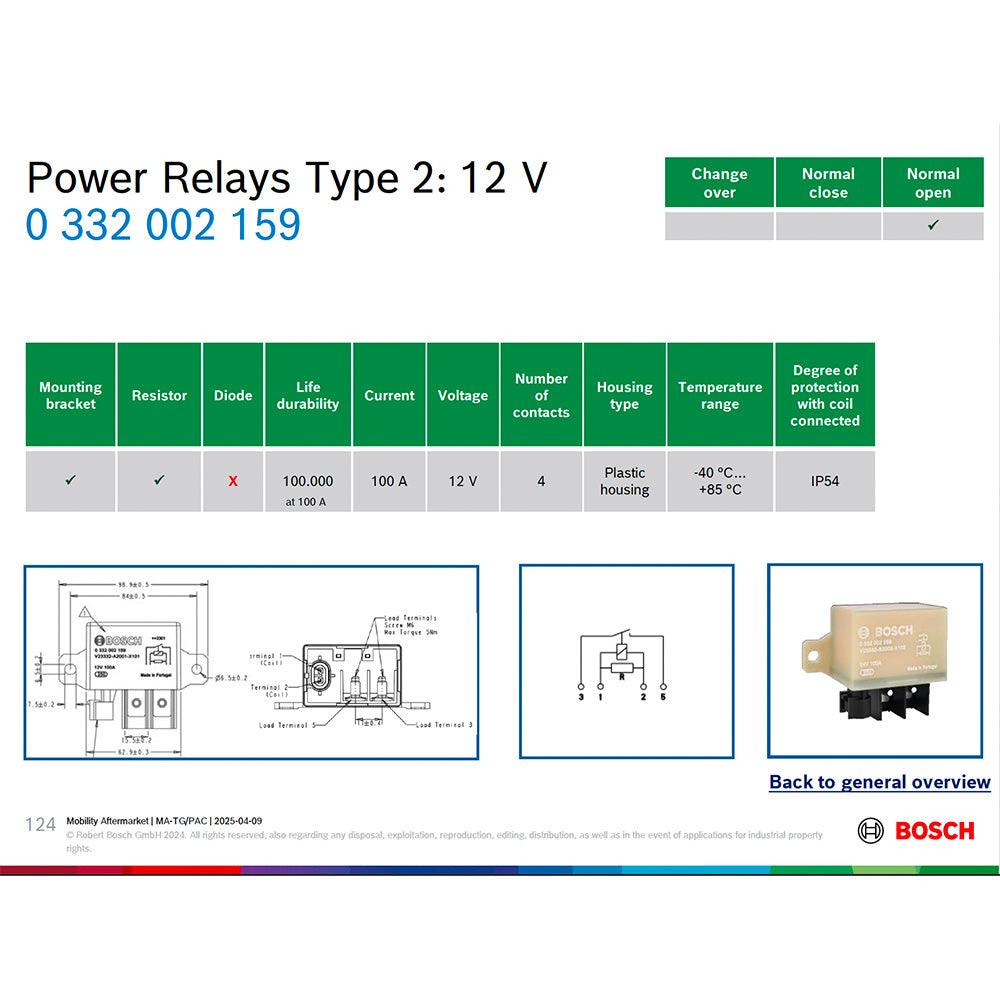

SPECIFICATIONS
