FEATURES
-
The 0986AH0251 model is the replacement for the 0332019151
- Normal Open Mini Relay, 12V, 30A, 5 Pins
- Long service life- made possible through meticulous processing and the use of high-quality materials allowing up to 100,000 switching cycles
-
Designed to withstand temperatures ranging from -40~ +100 °C
DESCRIPTION

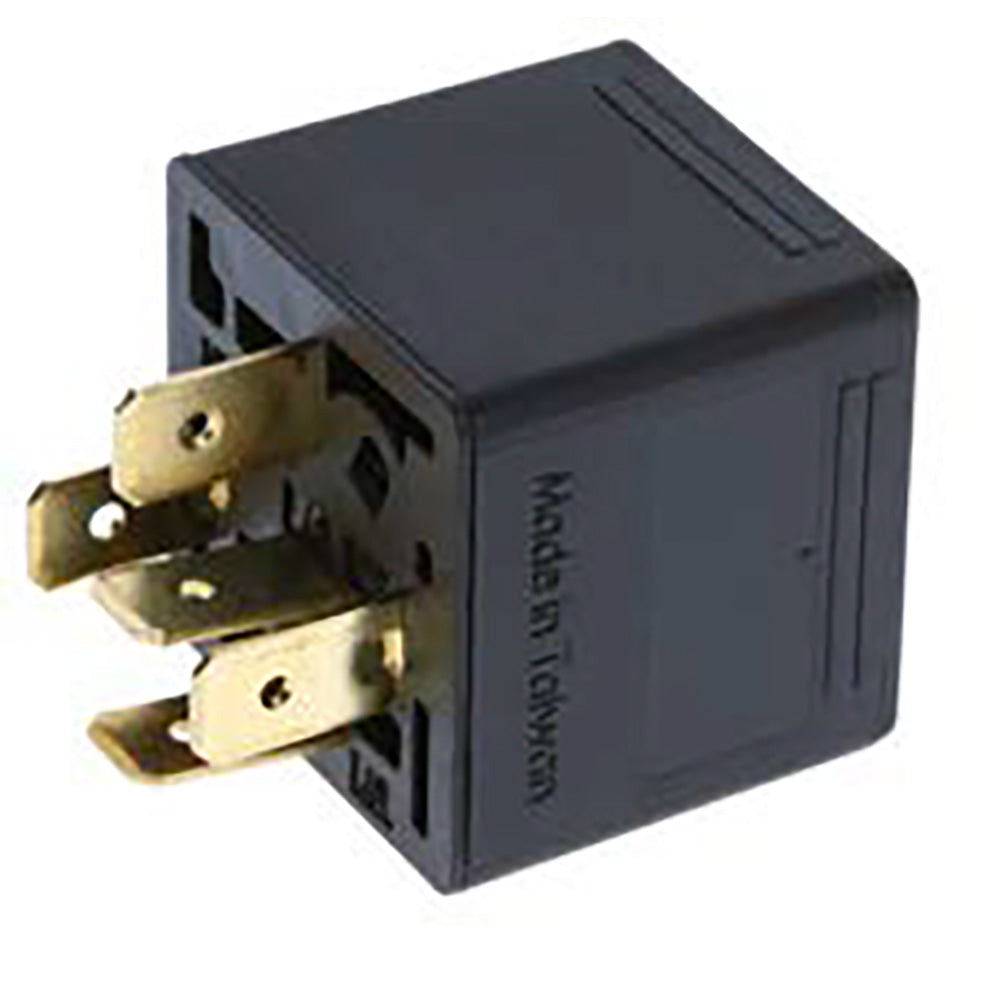

BOSCH 0986AH0251 Normal Open Mini Relay, 12V, 30A, 5 Pins
SPECIFICATIONS
| Type | Normal Open |
| Mounting Bracket | N/A |
| Resistor | N/A |
| Diode | N/A |
| Life durability | 100.000 |
| Current | 30 Amps |
| Voltage | 12 V |
| Number of Pins | 5 |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +100 °C |
OE NUMBER
AUDI: 311906061C
BMW: 1243207
FERRARI: 04013007, 313320134
FIAT: 4339372, 7612321
FORD: 82003697
HYUNDAI: 952253B100
JOHN DEERE: AZ26996
KIA: 0K01118811, 0K9A018811
MERCEDES: 0005458005, 0015423219, 0015424319, A0005458005, A0015423219, A0015424319
PORSCHE: 99965700990
VOLVO: 1235893,1501832
VOLKSWAGEN: 111963141C, 311906061C
