| Manufacturer | TE Connectivity |
|---|---|
| Product Category | Automotive Connectors |
| Product | Connector Housing |
| Part Number | DTM04-12PB |
| Series | DEUTSCH DTM |
| Number of Positions | 12 Position |
| Housing Side | Male Housing Side |
| Mating Connector Side | Female Housing Side |
| Compatible Contacts | Size 20 male pin contacts |
| Wire Gauge Range | 20 AWG |
| Insulation Range | .053-.120 in [1.35-3.05 mm] |
| Wedgelock | WM-12P |
| Color | Black |
| Material | Plastic |
| Shape | Rectangular |
| Sealed / Unsealed | Sealed |
| Mounting Style | Cable Mount / Free Hanging |
| Termination Style | Crimp |
| Current Rating | 7.5 A |
| Application | Wire-to-Wire / Vehicle Electrical |
| Product Type | Automotive Connectors |
| Subcategory | Automotive Connectors |
| Tradename | DTM |

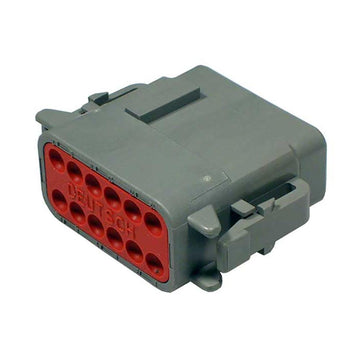

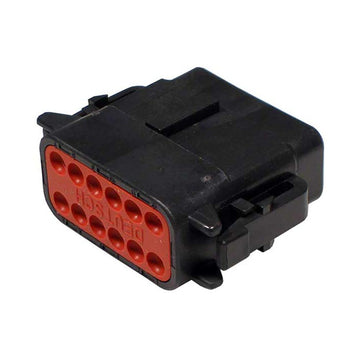

Use the matching DEUTSCH DTM 12-pin dtm06 female housing side housing, plus its wedgelock and size 20 female socket contacts, to complete the mating side.
Use the matching secondary lock with this DEUTSCH DTM 12-pin dtm04 male housing side housing.
Use size 20 male pin contacts with this DEUTSCH DTM 12-pin housing. Match the contact style and wire gauge before assembly.
Use DT-RT1 for Deutsch wedgelock removal where applicable. Use HDT-48-00 for closed barrel Deutsch contacts.
