| Description | Product Attribute |
|---|---|
| Manufacturer | TE Connectivity |
| Product Category | Automotive Connectors |
| Product | Connector Lock / Position Assurance |
| Product Description | Wedgelock for DT06-12S-P012 12-pin female housing applications |
| Part Number | W12S-P012 |
| TE Internal Number | W12S-P012 |
| Connector Family | DEUTSCH DT |
| Series | DEUTSCH DT |
| Connector & Contact Retention Accessory Type | Secondary Lock |
| Number of Positions | 12 Position |
| Compatible Housing Side | DT06-12S-P012 female-terminal housing side |

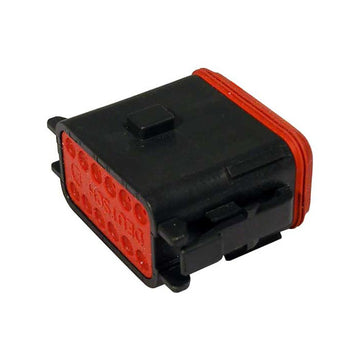

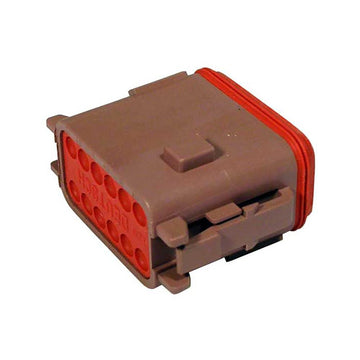

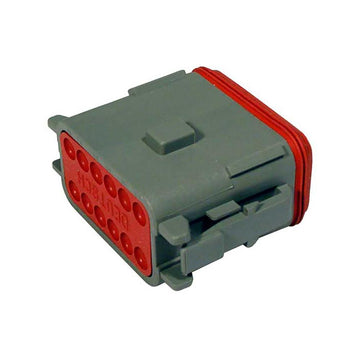

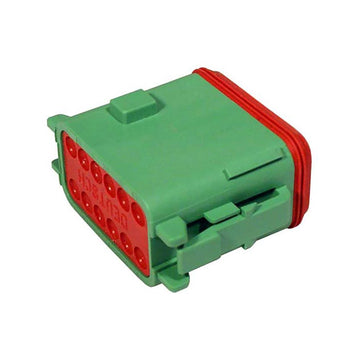

| Compatible Housings | DT06-12SA-P012, DT06-12SB-P012, DT06-12SC-P012, DT06-12SD-P012 |
| Compatible Contacts | Size 16 female socket contacts |
| Mating Connector Side | DT04-12P |
| Mating Side Contacts | Size 16 male pin contacts |
| Primary Product Material | Plastic |
| Sealable | No |
| Application | Wire-to-Wire / Vehicle Electrical |
| Installation Note | Install after contacts are seated in the matching DT06-12S-P012 housing to lock the terminals in place. |
| Application Note | Enhanced seal retention P012 wedgelock. Use only with matching enhanced DT06-12S-P012 applications. |
W12S-P012 is the wedgelock for DEUTSCH DT 12-pin enhanced dt06 female housing side housing applications. Add size 16 female socket contacts to complete this connector side.
Use size 16 female socket contacts with this side. Match the contact style and wire gauge before installing the wedgelock.
Use the matching dt04 male housing side housing, its wedgelock, and size 16 male pin contacts to complete the mating connector side.
Use DT-RT1 for Deutsch wedgelock removal where applicable. Use HDT-48-00 for closed barrel Deutsch contacts.
