| Description | Product Attribute |
|---|---|
| Manufacturer | TE Connectivity |
| Product Category | Automotive Connectors |
| Product | Connector Lock / Position Assurance |
| Product Description | Wedgelock for DTV06-18SA 18-pin female housing applications |
| Part Number | WV-18S |
| TE Internal Number | WV-18S |
| Connector Family | DEUTSCH DTV |
| Series | DEUTSCH DTV |
| Connector & Contact Retention Accessory Type | Secondary Lock |
| Number of Positions | 18 Position |
| Compatible Housing Side | DTV06-18SA female-terminal housing side |

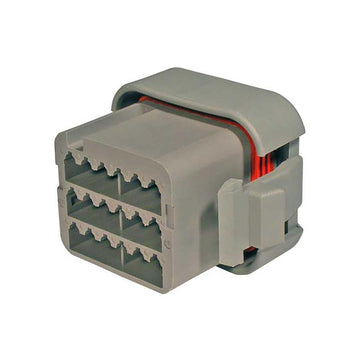

| Compatible Housings | DTV06-18SA |
| Compatible Contacts | Size 16 female socket contacts |

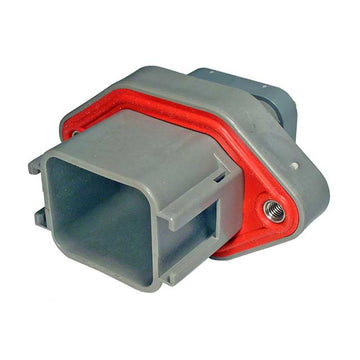

| Mating Connector Side | DTV02-18PA |
| Mating Side Contacts | Size 16 male pin contacts |
| Primary Product Material | Plastic |
| Sealable | No |
| Application | Wire-to-Wire / Vehicle Electrical |
| Installation Note | Install after contacts are seated in the matching DTV06-18SA housing to lock the terminals in place. |
WV-18S is the wedgelock for DEUTSCH DTV 18-pin dtv female housing side housing applications. Add size 16 female socket contacts to complete this connector side.
Use size 16 female socket contacts with this side. Match the contact style and wire gauge before installing the wedgelock.
Use the matching dtv male housing side housing, its wedgelock, and size 16 male pin contacts to complete the mating connector side.
Use DT-RT1 for Deutsch wedgelock removal where applicable. Use HDT-48-00 for closed barrel Deutsch contacts.
