| Description | Product Attribute |
|---|---|
| Manufacturer | TE Connectivity |
| Product Category | Automotive Connectors |
| Product | Connector Lock / Position Assurance |
| Product Description | Wedgelock for DTP04-4P 4-pin male housing applications |
| Part Number | WP-4P |
| TE Internal Number | WP-4P |
| Connector Family | DEUTSCH DTP |
| Series | DEUTSCH DTP |
| Connector & Contact Retention Accessory Type | Secondary Lock |
| Number of Positions | 4 Position |
| Compatible Housing Side | DTP04-4P male-terminal housing side |

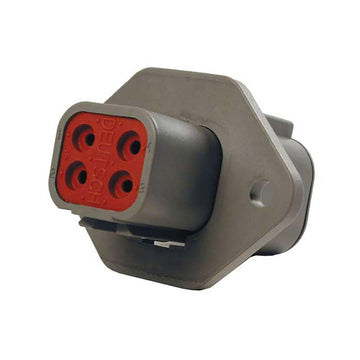

| Compatible Housings | DTP04-4P, DTP04-4P-E004, DTP04-4P-L012 |
| Compatible Contacts | Size 12 male pin contacts |
| Mating Connector Side | DTP06-4S |
| Mating Side Contacts | Size 12 female socket contacts |
| Primary Product Material | Plastic |
| Sealable | No |
| Application | Wire-to-Wire / Vehicle Electrical |
| Installation Note | Install after contacts are seated in the matching DTP04-4P housing to lock the terminals in place. |
WP-4P is the wedgelock for DEUTSCH DTP 4-pin dtp04 male housing side housing applications. Add size 12 male pin contacts to complete this connector side.
Use size 12 male pin contacts with this side. Match the contact style and wire gauge before installing the wedgelock.

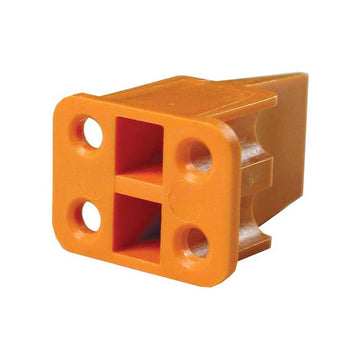

Use the matching dtp06 female housing side housing, its wedgelock, and size 12 female socket contacts to complete the mating connector side.
Use DT-RT1 for Deutsch wedgelock removal where applicable. Use HDT-48-00 for closed barrel Deutsch contacts.
