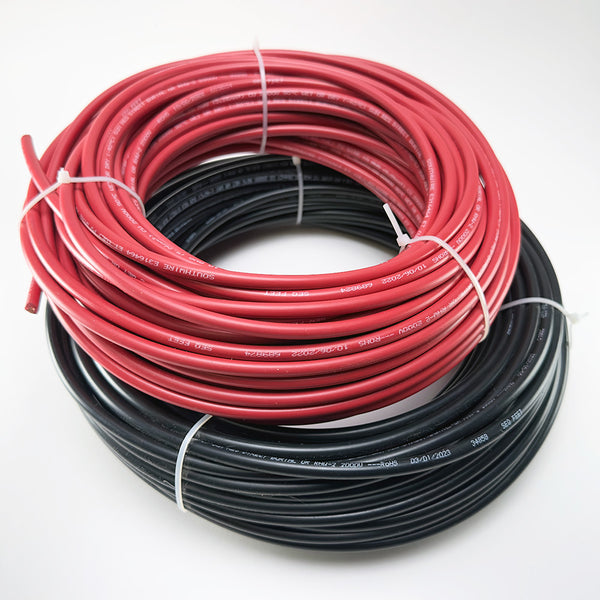

Southwire Commercial Grade (40FT Red & 40FT Black) Pure Copper 10AWG Solar Panel Wires, Solar Extension Cable 2000V (Made in USA)

FEATURES

• 2000Volt Rated DC Voltage, support more Solar Panel configurations
• Up to 40 Amp Rated Current at 90 Deg Celsius
• Capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions
• UL 44 Thermoset-Insulated Wires and Cables
• UL 4703 Photovoltaic Wire
• MADE IN USA

SPECIFICATIONS

• ASTM B3 Standard Specification for Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• ASTM B787 19 Wire Combination Unilay-Stranded Copper Conductors
• UL 44 Thermoset-Insulated Wires and Cables
• UL 4703 Standard for Photovoltaic Wire
• Buy American: Compliant with Buy American Requirements, found in 49 U.S.C. § 5323(j); specify “Made in the USA Only!” when ordering to ensure your project receives American made products.
• VW-1 Vertical-Wire Flame Test (Optional)

DESCRIPTION

Southwire’s 2000 Volt power cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions.
