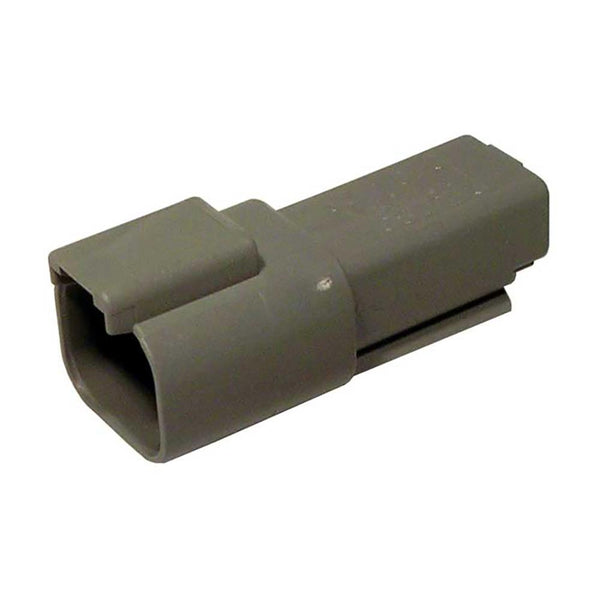

| Description | Product Attribute |
|---|---|
| Manufacturer | TE Connectivity |
| Product Category | Automotive Connectors |
| Product | Housings |
| Number of Positions | 2 Position |
| Pitch | 5.46 mm (0.215 in) |
| Gender | Receptacle (Female) |
| Mounting Style | Cable Mount / Free Hanging |
| Termination Style | Crimp |
| Wire Gauge Min | 20 AWG |
| Wire Gauge Max | 14 AWG |
| Color | Gray |
| Sealed / Unsealed | Sealed |
| Series | DT |
| Packaging | Each |
| Application | Wire to Wire |
| Contact Gender | Without Pin Contacts |
| Current Rating | 13 A |
| Height | 17.02 mm |
| Housing Material | Polyamide (PA) |
| Ingress Protection | IP68, IP6K9K |
| Length | 43.38 mm |
| Locking Mechanism | Integrated in Housing |
| Material | Plastic |
| Maximum Operating Temperature | + 125 C |
| Minimum Operating Temperature | - 55 C |
| Mounting Angle | Straight |
| Number of Rows | 1 Row |
| Product Type | Automotive Connectors |
| Subcategory | Automotive Connectors |
| Tradename | DT |
| Type | Receptacle |
| Voltage Rating | 250 V |
| Width | 17.15 mm |
| Wire Gauge Range | 14 AWG to 20 AWG |
| Part # Aliases | DT04-2P-L DT04-2P-LD DT04-2P-LS ZPF000000000130153 |

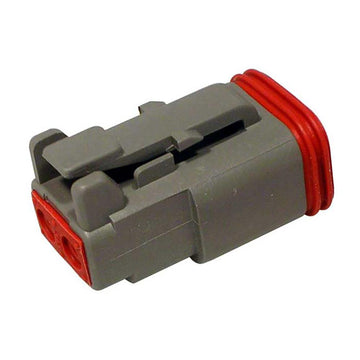

Mating Connector
Use the matching DT 2-pin female housing, plus its wedgelock and socket contacts, to complete the mating side.

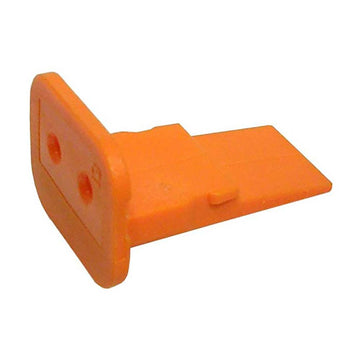

Wedgelock
Use the matching secondary lock with this DT 2-pin male housing.
Pins
Use male pin contacts with this DT 2-pin housing. Match the contact to the wire gauge. Do not use socket contacts on this side.
Tools
Use DT-RT1 for DT series contact removal. Use HDT-48-00 for closed barrel solid contacts.
