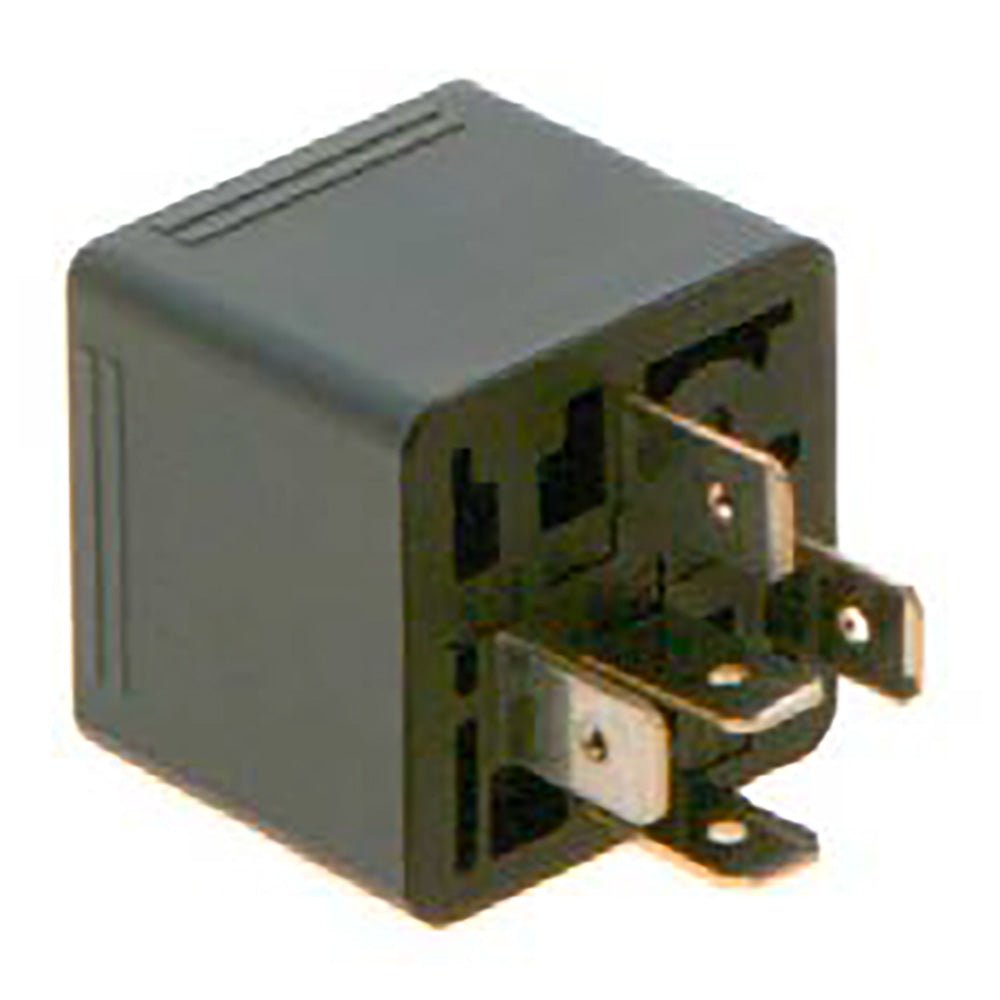

Bosch 0332209204 Changeover Mini Relay, Diode, 5 Pins, 24 V, 20/10 A (superseded by the 0986332403)

FEATURES

• The 0332209204 model is discontinued, replaced by 0986332403
• Durable and robust due to meticulous processing and use of high-quality materials for up to 250,000 switching cycles
• Example uses include: cooling fans, fuel pumps, wipers, blowers, lights, door locks, horns, mirrors, and starters
• General purpose relays can be used in cars, trucks, motorcycles, ATVs, off-highway, marine and non-vehicle applications
• Reliable and safe switching of high currents

DESCRIPTION

Bosch has been producing relays for vehicles and other applications for more than 40 years - this vast development experience ensures continuous advancement in design features to deliver optimum performance.

Bosch relays incorporate only the highest quality materials for superior performance and a 250,000 switching cycle capability. Superior engineering provides vibration, shock, and high temperature resistance that ensures enhanced reliability and a long service life. 12V, 20/10A.

SPECIFICATIONS

OE NUMBER

MERCEDES: 0005455805, 0035459805, 0045451105, 0045453305, 0045456405,  A0005455805, 0045457805, A0035459805, A0045451105, A0045453305, A0045456405,  A0045457805,

VOLVO: 21244697, 4786690, 9518230
