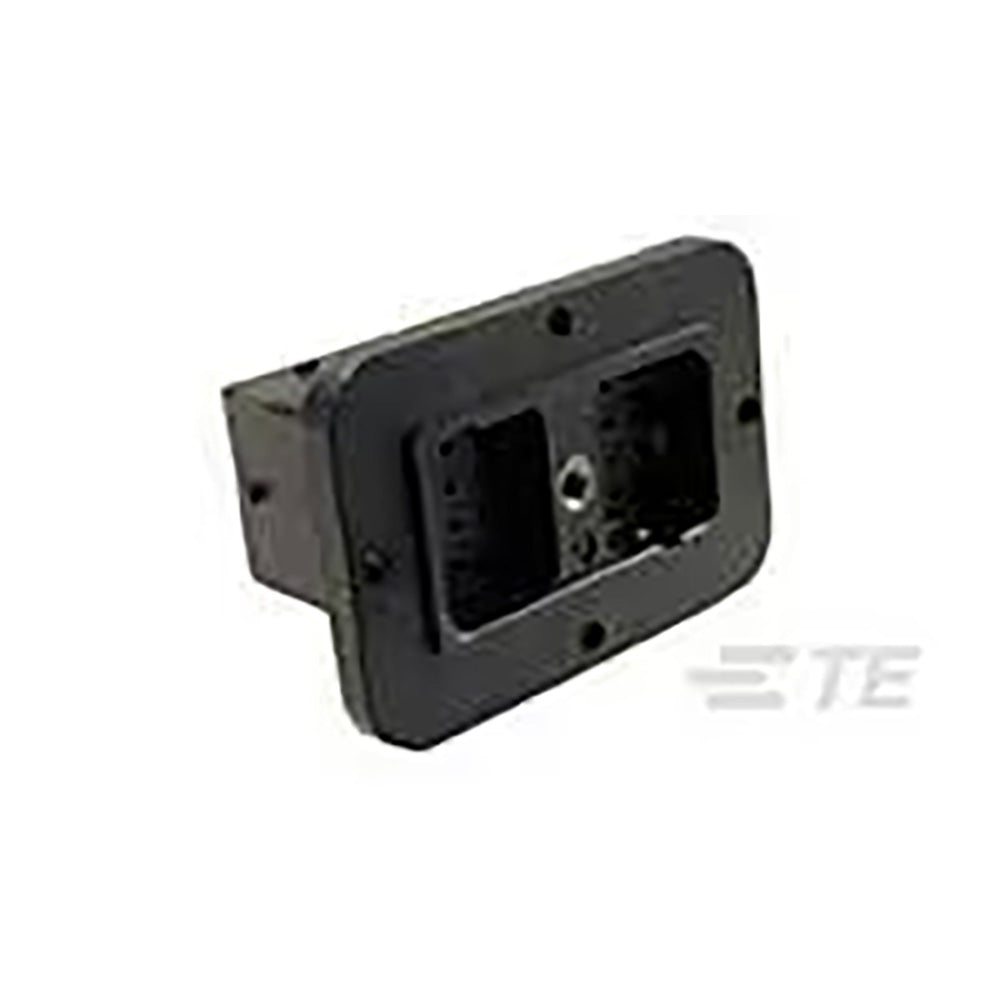

DEUTSCH DRC12-24PA DRC Series 24-Pin Male Connector

DEUTSCH DRC12-24PA DRC Series 24-Pin Male Connector

~~$45.99~~ $19.99

FREE delivery available*

75 products available.

- Add To Wishlist

SKU: TEC-DRC12-24PA Category: Connectors & Pigtails, Deutsch (TE Connectivity), Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

FEATURES

Connector Type: Rectangular, receptacle (female gender housing for male pins).
Number of Positions: 24 positions.
Mounting Style: Panel mount with an integral flange.
Contact Size & Type: Accepts Size 16 pin contacts (male). Contacts are rated for up to 13 amps of current.
Wire Gauge Range: 20 AWG to 14 AWG.
Material & Color: Housing made of glass-filled polyphenylene sulfide (PPS GF) with silicone rubber seals; color is black.
Environmental Sealing: Environmentally sealed with an IP68 rating, resistant to moisture, dirt, and rough terrain contamination.
Voltage Rating: 250 VDC maximum.
Operating Temperature: -55°C to 125°C (-67°F to 257°F).
Mating Alignment: Features A keying and a jackscrew for secure and proper mating.

PRODUCT DESCRIPTION

DEUTSCH DRC12-24PA is an environmentally sealed, 24-position, flange-mount, receptacle connector (housing for male terminals) in the TE Connectivity / Deutsch DRC series, designed for rugged automotive and heavy-duty applications.

Brand: Deutsch

Manufacturer: TE Connectivity

Country of Origin: USA

TECHNICAL DEAILS

Deutsch #: DRC12-40PA

Series: DRC Series

Insulation: .100-.134 [2.54-3.40]

Wire Size: 14, 16, 18, 20

Keyed: Yes, A key

Color: Black

Material: Plastic

Shape: Rectangular
