FEATURES

  • Housing Type: Plug housing for female (socket) terminals.
  • Number of Positions: 24.
  • Contact Size: Accepts Size 16 contacts, rated for a maximum of 13 Amps per contact.
  • Mating Pin Diameter: 1.59 mm.
  • Keying: Key A alignment to prevent mismating with other keyed connectors.
  • Sealing: Environmentally sealed with an IP68 and IP6K9K degree of protection against moisture and dirt.
  • Material: High-performance thermoplastic (PPS GF) body and silicone rubber seals.
  • Operating Temperature: Wide range from -55°C to +125°C (-67°F to +257°F).
  • Voltage Architecture: Nominal voltage architecture of 12V, 24V, and 48V.
  • Mounting: Cable Mount (Free-Hanging/In-line)



PRODUCT DESCRIPTION

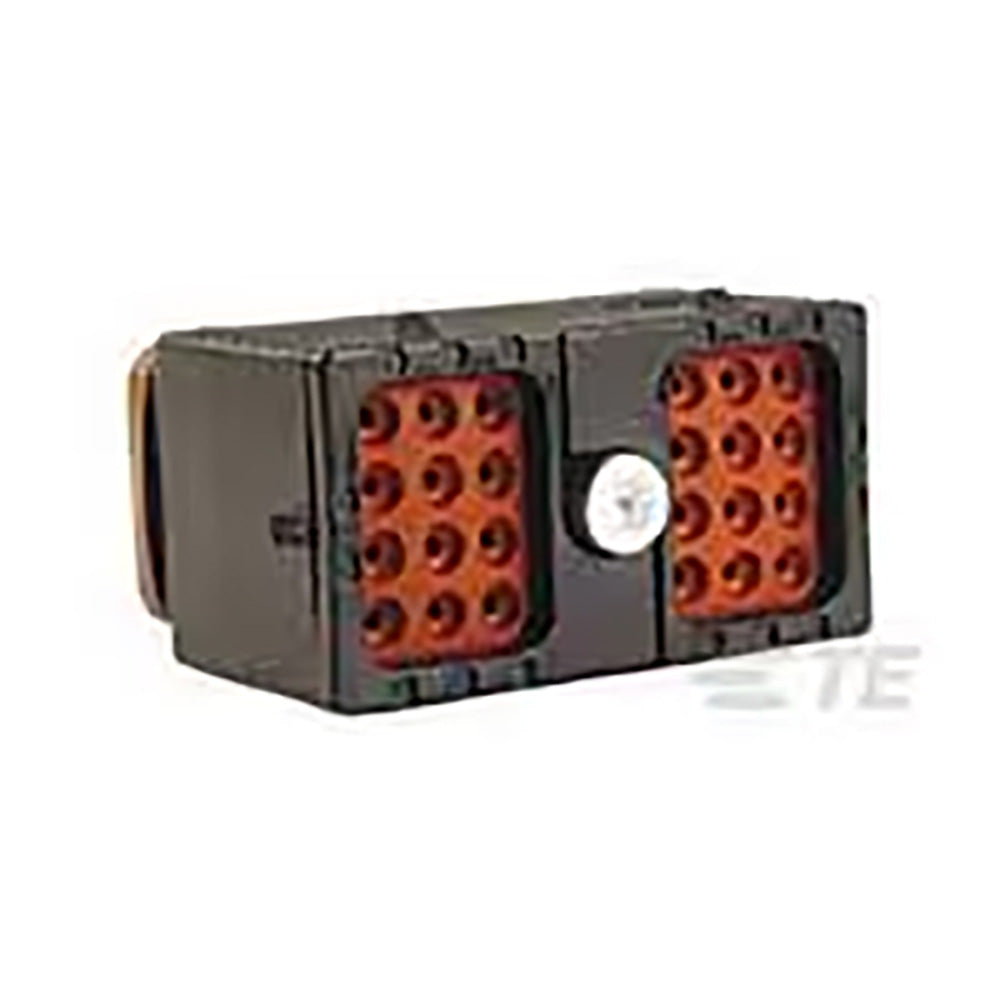

DEUTSCH DRC16-24SA is a 24-position, sealed, in-line plug housing designed for female (socket) contacts in demanding automotive and heavy-duty applications



Brand: Deutsch

Manufacturer: TE Connectivity

Country of Origin: USA





TECHNICAL DEAILS



Deutsch #:                      DRC18-40SA

Series:                              DRC Series

Insulation:                       .100-.134 [2.54-3.40]

Wire Size:                        14, 16, 18, 20

Keyed:                              Yes, A key

Color:                                Black

Material:                          Plastic

Shape:                              Rectangular

Cavities:                          70

Contact Size:                 16

Current Rating:             13

Holds Pin/Socket:         Socket

Style:                                 In-line
