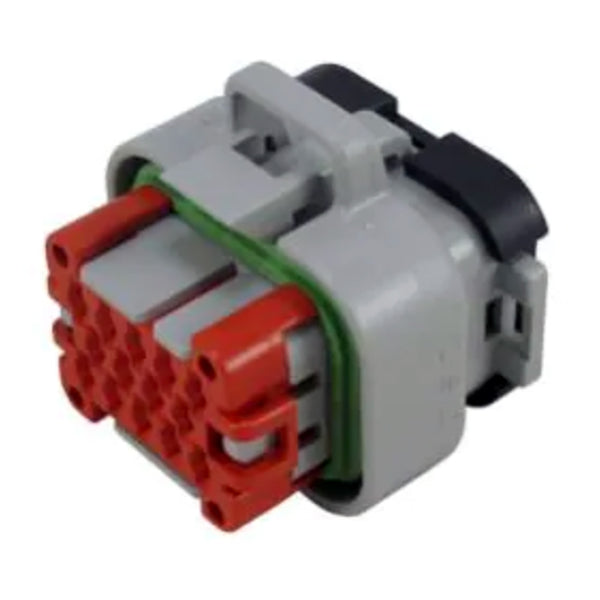

| Connector Shape | Rectangular |
|---|---|
| Connector System | Wire-to-Board |
| Connector & Housing Type | Housing for Female Terminals |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Primary Locking Feature | Integrated in Housing |
| Mixed & Hybrid Connector | No |
| Number of Positions | 14 |
| Number of Rows | 3 |
| Operating Voltage (VAC) | 250 |
| Nominal Voltage Architecture (V) | 250 |
| Cable Exit Angle | 180° |
| Primary Product Color | Gray |
| Connector & Keying Code | 4 |
| Contact Type | Socket |
| Contact Size | 1.3mm |
| Mating Pin Diameter | 1.3 mm [ .051 in ] |
| Contact Current Rating (Max) (A) | 17 |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Strain Relief | Without |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Terminal Position Assurance | Yes |
| Housing Material | PBT GF |
| Centerline (Pitch) | 4 mm [ .157 in ] |
| Row-to-Row Spacing | 4 mm [ .157 in ] |
| Product Length | 35.4 mm [ 1.394 in ] |
| Product Width | 33.6 mm [ 1.323 in ] |
| Connector Height | 34.6 mm [ 1.362 in ] |
| Operating Temperature (Max) | 125 °C [ 257 °F ] |
| Operating Temperature Range | -40 – 125 °C [ -40 – 257 °F ] |
| Circuit Application | Power & Signal |
| UL Flammability Rating | UL 94V-0 |
| Degree of Protection | IP67, IP69K |
| Packaging Method | Box & Tray |
| Packaging Quantity | 280 |
| Connector Position Assurance Capable | Yes |
| Serviceable | Yes |
Match the same connector family, cavity count, terminal gender, and mating half before ordering.
Use Deutsch-focused service tools for DT-family installation and removal work.
