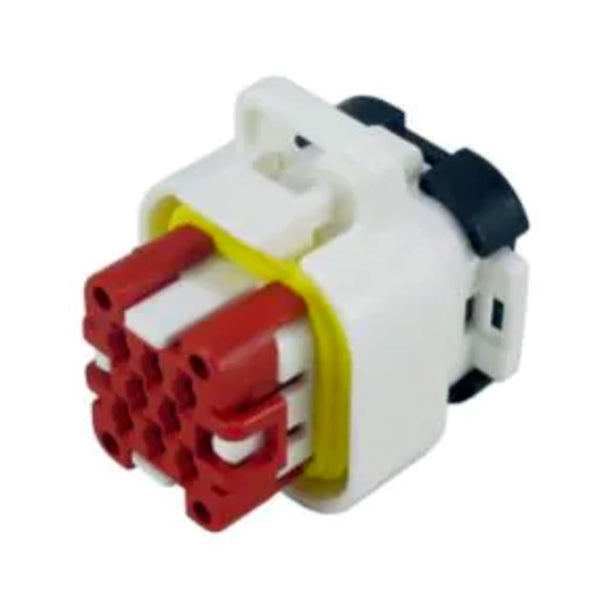

Deutsch 776286-2 Ampseal 8-Pin White housing

Product Type Features

• Connector Shape : Rectangular

• Connector System : Wire-to-Board

• Connector & Housing Type : Housing for Female Terminals

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Primary Locking Feature : Integrated in Housing

• Mixed & Hybrid Connector : No

Configuration Features

• Number of Positions : 8

• Number of Rows : 3

Electrical Characteristics

• Operating Voltage (VAC): 250

• Nominal Voltage Architecture (V): 250

Body Features

• Cable Exit Angle : 180°

• Primary Product Color : Natural

• Connector & Keying Code : 2

Contact Features

• Contact Type : Socket

• Contact Size : 1.3mm

• Mating Pin Diameter : 1.3 mm [ .051 in ]

• Contact Current Rating (Max) (A): 17

Mechanical Attachment

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

Housing Features

• Housing Material : PBT GF

• Centerline (Pitch) : 4 mm [ .157 in ]

Dimensions

• Row-to-Row Spacing : 4 mm [ .157 in ]

• Product Length : 27.4 mm [ 1.079 in ]

• Product Width : 33.6 mm [ 1.323 in ]

• Connector Height : 34.6 mm [ 1.362 in ]

Usage Conditions

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

• Circuit Application : Power & Signal

Industry Standards

• UL Flammability Rating : UL 94V-0

• Degree of Protection : IP67, IP69K

Packaging Features

• Packaging Method : Box & Tray

• Packaging Quantity : 280

Other

• Connector Position Assurance Capable : Yes

• Serviceable : Yes
