| Connector Shape | Rectangular |
|---|---|
| Connector System | Wire-to-Wire |
| Connector & Housing Type | Housing for Male Terminals |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Primary Locking Feature | Integrated in Housing |
| Mixed & Hybrid Connector | No |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Blank Cavity Position | 0 |
| Operating Voltage (VAC) | 250 |
| Operating Voltage (VDC) | 250 |
| Nominal Voltage Architecture (V) | 12, 24, 61 |
| Cable Exit Angle | 180° |
| Primary Product Color | Green |
| Connector & Keying Code | C |
| Contact Type | Pin |
| Contact Size | Size 16 |
| Mating Pin Diameter | 1.59 mm [ .063 in ] |
| Contact Current Rating (Max) (A) | 13 |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Strain Relief | Add By Accessory |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Terminal Position Assurance | Yes |
| Housing Material | PA GF |
| Centerline (Pitch) | 9.12 mm [ .359 in ] |
| Compatible Insulation Diameter Range | 2.23 – 3.68 mm [ .088 – .145 in ] |
| Row-to-Row Spacing | 4.45 mm [ .175 in ] |
| Product Length | 45.67 mm [ 1.798 in ] |
| Product Width | 36.45 mm [ 1.435 in ] |
| Connector Height | 23.88 mm [ .94 in ] |
| Operating Temperature (Max) | 125 °C [ 257 °F ] |
| Operating Temperature Range | -55 – 125 °C [ -67 – 257 °F ] |
| Circuit Application | Power & Signal |
| UL Flammability Rating | 12mm Flame Test per Standard UL-94 |
| Compatible With Agency/Standards Products | SAE J2030 |
| Degree of Protection | IP68, IP6K9K |
| Packaging Method | Box |
| Packaging Quantity | 300 |
| Connector Position Assurance Capable | No |
| Serviceable | Yes |
Use the matching DT 8-pin female housing, plus its wedgelock and socket contacts, to complete the mating side.

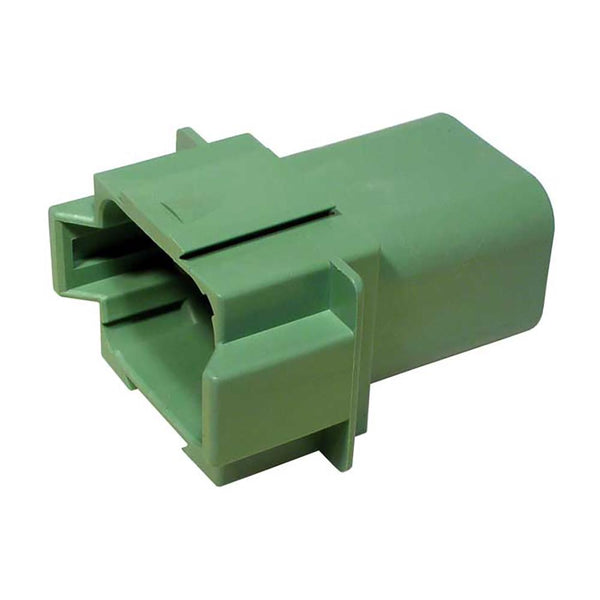

Use the matching secondary lock with this DT 8-pin male housing.
Use male pin contacts with this DT 8-pin housing. Match the contact to the wire gauge. Do not use socket contacts on this side.
Use DT-RT1 for DT series contact removal. Use HDT-48-00 for closed barrel solid contacts.
