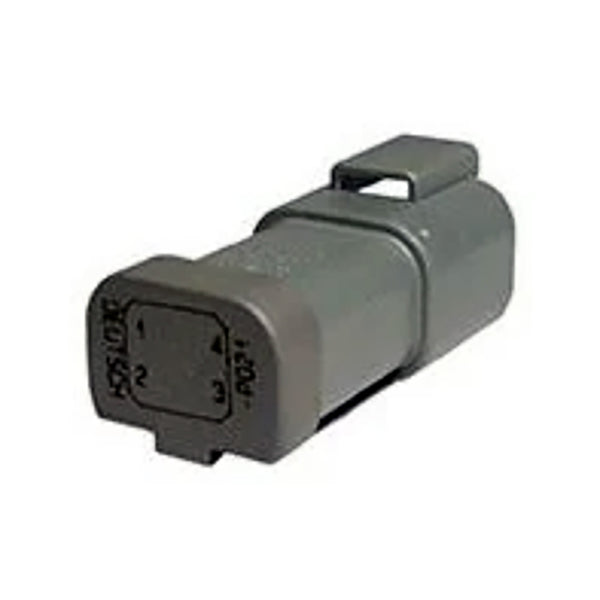

DEUTSCH DT04-4P-P021 DT 4-Pin Male Bus Bar Nickel Contacts

Product Type Features

• Connector Shape : Rectangular

• Connector System : Bus Bar-to-Wire

• Connector & Housing Type : Housing for Male Terminals

• Sealable : Yes

• Connector & Contact Terminates To : Bus Bar, Wire & Cable

• Primary Locking Feature : Integrated in Housing

• Mixed & Hybrid Connector : No

Configuration Features

• Connector Modification : (1) 4 Pin Buss

• Number of Positions : 4

• Number of Rows : 2

• Blank Cavity Position : 0

Electrical Characteristics

• Operating Voltage (VAC): 250

• Operating Voltage (VDC): 250

• Nominal Voltage Architecture (V): 12, 24, 48

Body Features

• Cable Exit Angle : 180°

• Primary Product Color : Gray

Contact Features

• Contact Type : Pin

• Mating Pin Diameter : 1.59 mm [ .063 in ]

• Contact Current Rating (Max) (A): 13

Mechanical Attachment

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Strain Relief : Add By Accessory

• Connector Mounting Type : Bus Bar Mount

• Terminal Position Assurance : Yes

Housing Features

• Housing Material : PA GF

• Centerline (Pitch) : 4.45 mm [ .175 in ]

Dimensions

• Row-to-Row Spacing : 9.12 mm [ .359 in ]

• Product Length : 47.45 mm [ 1.868 in ]

• Product Width : 20.83 mm [ .82 in ]

• Connector Height : 19.71 mm [ .776 in ]

Usage Conditions

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

• Circuit Application : Power & Signal

Industry Standards

• UL Flammability Rating : Not tested

• Compatible With Agency/Standards Products : SAE J2030

• Degree of Protection : IP68, IP6K9K

Other

• Connector Position Assurance Capable : No

• Serviceable : No
