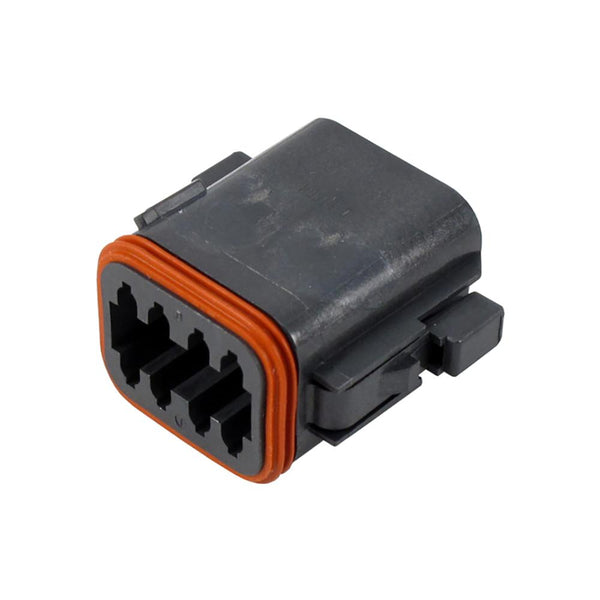

DEUTSCH DT06-08SB DT 8-Pin Black Female Connector

Product Type Features

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Connector & Housing Type : Housing for Female Terminals

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Primary Locking Feature : Integrated in Housing

• Mixed & Hybrid Connector : No

Configuration Features

• Number of Positions : 8

• Number of Rows : 2

• Blank Cavity Position : 0

Electrical Characteristics

• Operating Voltage (VAC): 250

• Operating Voltage (VDC): 250

• Nominal Voltage Architecture (V): 12, 24, 48

Body Features

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Connector & Keying Code : B

Contact Features

• Contact Type : Socket

• Mating Pin Diameter : 1.59 mm [ .063 in ]

• Contact Current Rating (Max) (A): 13

Mechanical Attachment

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Strain Relief : Add By Accessory

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

Housing Features

• Housing Material : PA GF

• Centerline (Pitch) : 9.12 mm [ .359 in ]

Dimensions

• Compatible Insulation Diameter Range : 2.23 – 3.68 mm [ .088 – .145 in ]

• Row-to-Row Spacing : 4.45 mm [ .175 in ]

• Product Length : 30.91 mm [ 1.217 in ]

• Product Width : 19.71 mm [ .776 in ]

• Connector Height : 37.21 mm [ 1.465 in ]

Usage Conditions

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

• Circuit Application : Power & Signal

Industry Standards

• UL Flammability Rating : 12mm Flame Test per Standard UL-94

• Compatible With Agency/Standards Products : SAE J2030

• Degree of Protection : IP68, IP6K9K

Packaging Features

• Packaging Method : Box

• Packaging Quantity : 550

Other

• Connector Position Assurance Capable : No

• Serviceable : Yes
