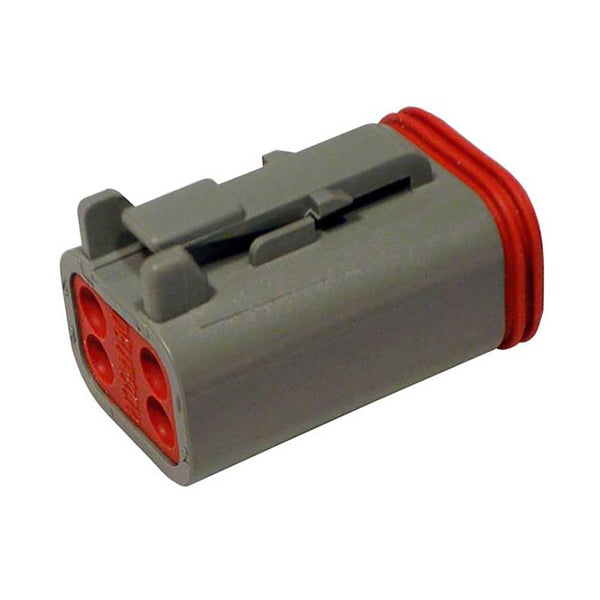

| Deutsch # | DT06-4S |
|---|---|
| Series | DT Series |
| Insulation | .088-.145 [2.24-3.68] |
| Wire Size | 14, 16, 18, 20 |
| Wedgelock | W4S |
| Keyed | No |
| Color | Gray |
| Material | Plastic |
| Shape | Rectangular |
| Cavities | 4 |
| Contact Size | 16 |
| Current Rating | 13 |
Mating Connector
Use the matching DT 4-pin male housing, plus its wedgelock and pin contacts, to complete the mating side.
Wedgelock
Use the matching secondary lock with this DT 4-pin female housing.
Sockets
Use female socket contacts with this DT 4-pin housing. Match the contact to the wire gauge. Do not use pin contacts on this side.
Tools
Use DT-RT1 for DT series contact removal. Use HDT-48-00 for closed barrel solid contacts.
