Bosch 0332019110 Normal Open Mini Relay, Resistor 4 Pins, 12 V, 30 A (Superseded to 0986332302)

Bosch 0332019110 Normal Open Mini Relay, Resistor 4 Pins, 12 V, 30 A (Superseded to 0986332302)

~~$7.99~~ $3.99

FREE delivery available*

58 products available.

- Add To Wishlist

SKU: BSH-0332019110 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

FEATURES

The 0332019110 model is discontinued, replaced by the 0986332302
Durable and robust due to meticulous processing and use of high-quality materials for up to 250,000 switching cycles
Example uses include: cooling fans, fuel pumps, wipers, blowers, lights, door locks, horns, mirrors, and starters
General purpose relays can be used in cars, trucks, motorcycles, ATVs, off-highway, marine and non-vehicle applications
Reliable and safe switching of high currents

DESCRIPTION

Bosch 0332019110 Normal Open Mini Relay, Resistor, 4 Pins, 12 V, 30 A, black

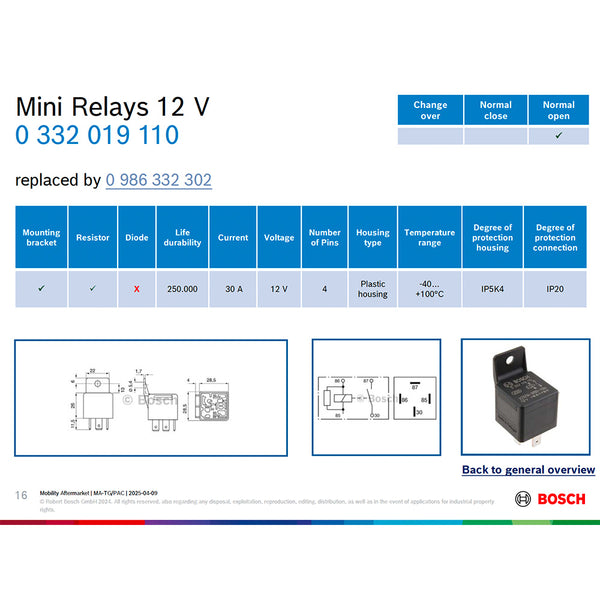

SPECIFICATIONS

Type	Normal Open
Mounting Bracket	Plastic
Resistor	Yes
Diode	N/A
Life durability	250.000
Current	30 Amps
Voltage	12 V
Number of Pins	4
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
Housing Protection	IP5K4
Connection Protection	IP20
