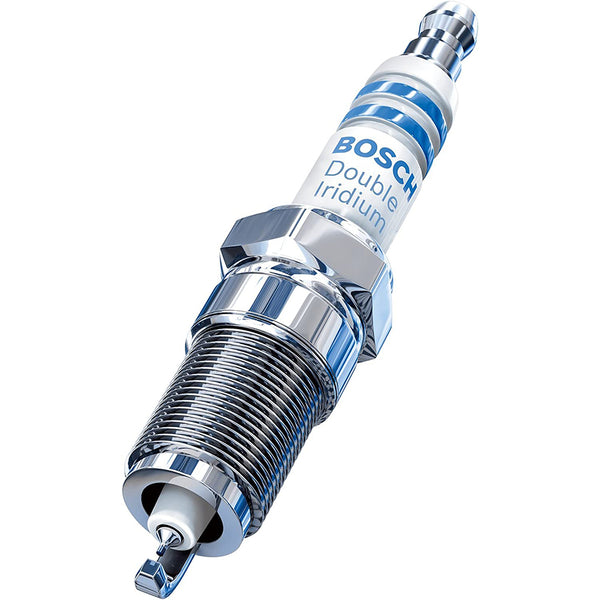

Bosch 9600 OE Fine Wire Double Iridium Spark Plug
Delivery info
Shipping options are calculated at checkout. Eligible battery products may qualify for local delivery near Walnut, CA.
30 days returns
Return requests must be made within 30 days of delivery. Items must be unopened, unused, and approved with an RMA before return.
SPECIFICATIONS
| Center Electrode Core Material | Nickel-Yttrium and Copper and Iridium |
| Center Electrode Tip Material | Iridium |
| Ground Configuration | Standard |
| Ground Electrode Core Material | N/A |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Tapered |
| Ground Electrode Tip Material | Nickel-Yttrium and Iridium |
| Hex Size | 16 |
| Insulator Material | Ceramic |
| Insulator Type | Non-Projected |
| Manufacturer Heat Range | 8 |
| Outdoor Power Equipment Application | No |
| Package Contents | Spark Plug |
| Package Quantity | 1 |
| Pre-Gap Size | 1 mm |
| Prop 65 Warning Label Required? | No |
| Reach | 19 mm |
| Resistance | 6000 Ohms |
| Resistor | Yes |
| Seat Type | Flat |
| Short Style | No |
| Spark Plug Type | 4-Cycle |
| Thread Diameter | 14 mm |
