BOSCH 0332019801 Normal Open Mini Relay, 5 Pins, 12 V, 30 A (SUPERSEDED TO 0986332300)

BOSCH 0332019801 Normal Open Mini Relay, 5 Pins, 12 V, 30 A (SUPERSEDED TO 0986332300)

~~$11.99~~ $7.99

FREE delivery available*

10 products available.

- Add To Wishlist

SKU: BSH-0332019801 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

NOTE: THE 0332019801 MODEL IS SUPERSEDED TO 0986332300)

FEATURES

The 0332019801 model is discontinued, replaced by 0986332300

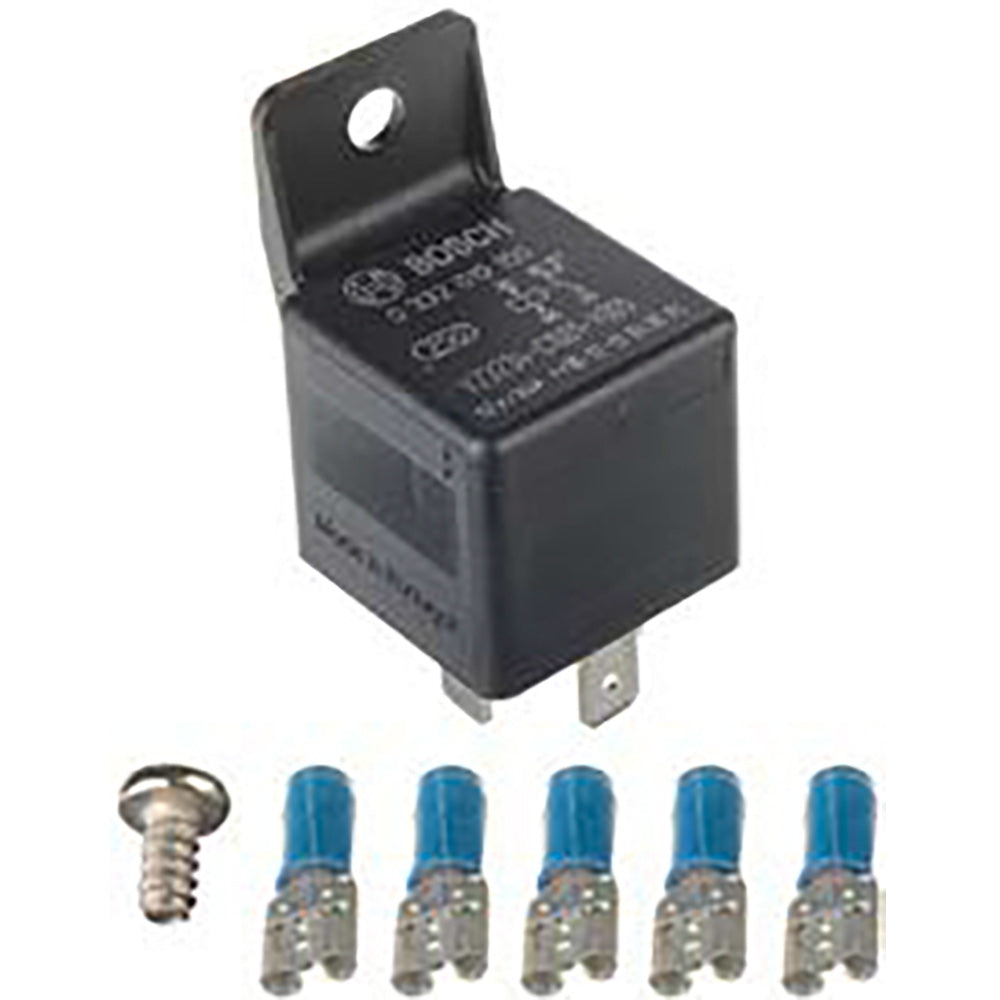

Connector terminals and screw in the picture are not included in the package
5 Pins, 12 Volts, 30 Amp
Normal Open Mini Relays
Long service life- made possible through meticulous processing and the use of high-quality materials allowing up to 250,000 switching cycles
Designed to withstand temperatures ranging from -40~ +100°C

DESCRIPTION

BOSCH 0332019801 Normal Open Mini Relay, 5 Pins, 12 V, 30 A (SUPERSEDED TO 0986332300)

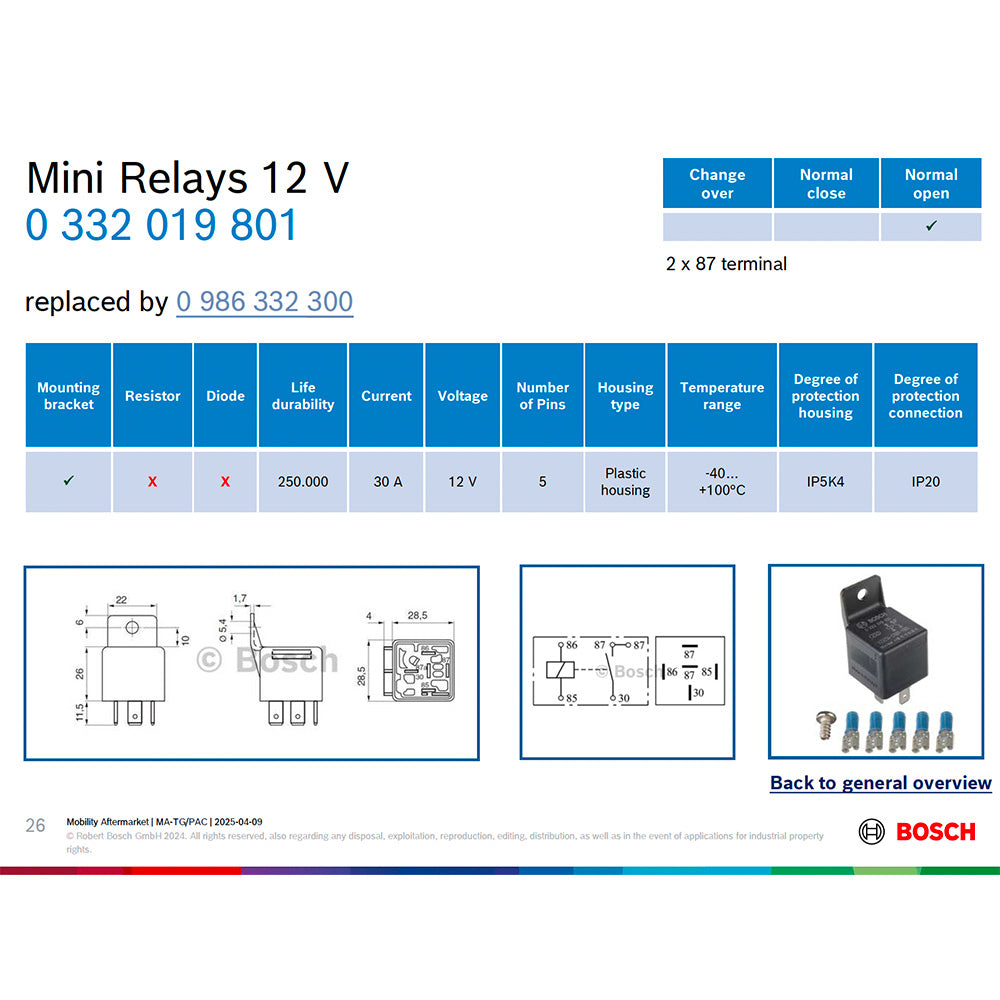

SPECIFICATIONS

Type	Normal Open
Mounting Bracket	Plastic
Resistor	N/A
Diode	N/A
Life durability	250.000
Current	30 Amps
Voltage	12 V
Number of Pins	5
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
Housing Protection	IP5K4
Connection Protection	IP20
