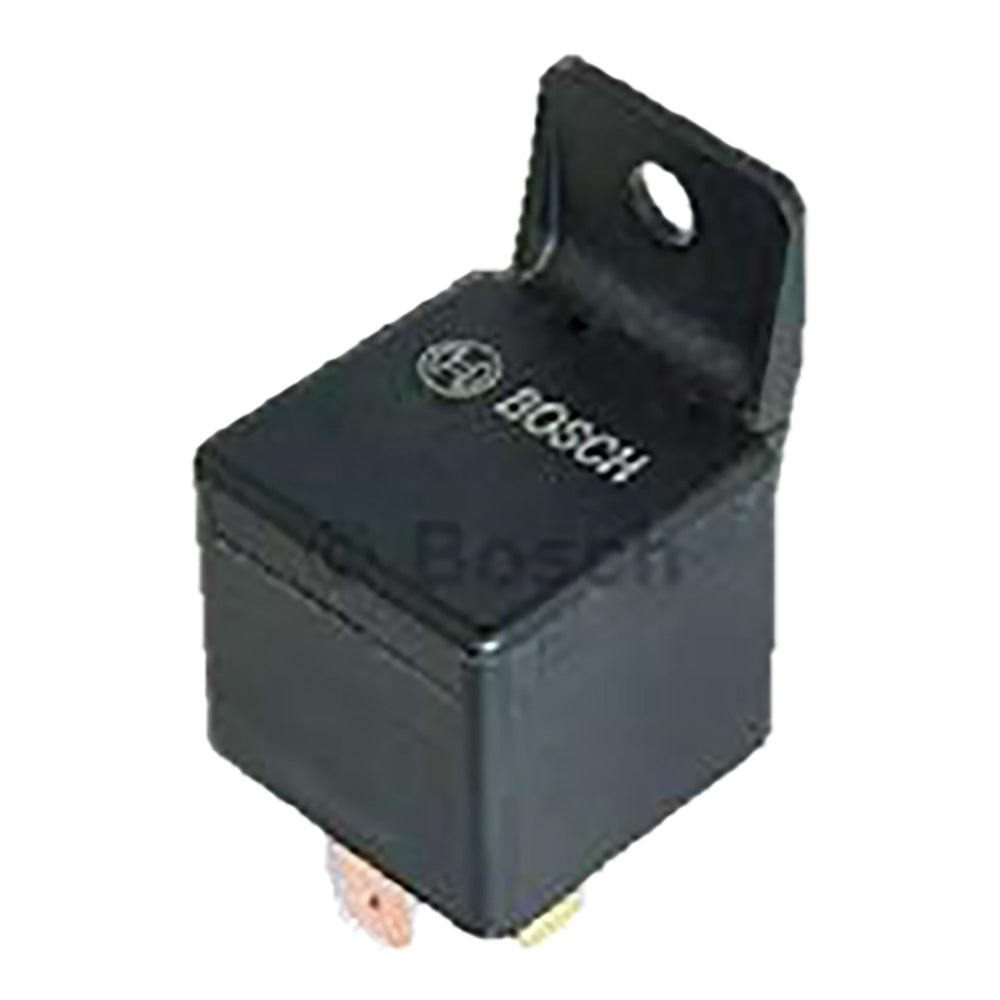

Bosch 0332209138 Changeover Mini Relay, Resistor 12V, 30/10A (SUPERSEDED TO 0986332215)

Bosch 0332209138 Changeover Mini Relay, Resistor 12V, 30/10A (SUPERSEDED TO 0986332215)

~~$16.99~~ $9.99

FREE delivery available*

226 products available.

- Add To Wishlist

SKU: BSH-0332209138 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

NOTE: THE 0332209138 MODEL IS SUPERSEDED TO 0986332215

FEATURES

The 0332209138 model is discontinued, replace by 0986332215
ChangeOver relay, 12V, relay switch, 5 pole relay
Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 250 000 switching cycles
12V 50A relay: rated switching currents of up to 50 A - For high power
Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance.Housing: IP5K4, Terminal: IP20

DESCRIPTION

Bosch 0332209138 Changeover Mini Relay, Resistor, 12V, 30/10A, IP5K4, IP20

SPECIFICATIONS

Type	Change Over
Mounting Bracket	Plastic
Resistor	Yes
Diode	N/A
Life durability	250.000
Current	30/10 Amps
Voltage	12 V
Number of Pins	5
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
Housing Protection	IP5K4
Connection Protection	IP20
