FEATURES

  • The 0332209151 model is discontinued, replaced by the 0986332401
  • Durable and robust due to meticulous processing and use of high-quality materials for up to 250,000 switching cycles
  • Example uses include: cooling fans, fuel pumps, wipers, blowers, lights, door locks, horns, mirrors, and starters
  • General purpose relays can be used in cars, trucks, motorcycles, ATVs, off-highway, marine and non-vehicle applications
  • Reliable and safe switching of high currents



DESCRIPTION

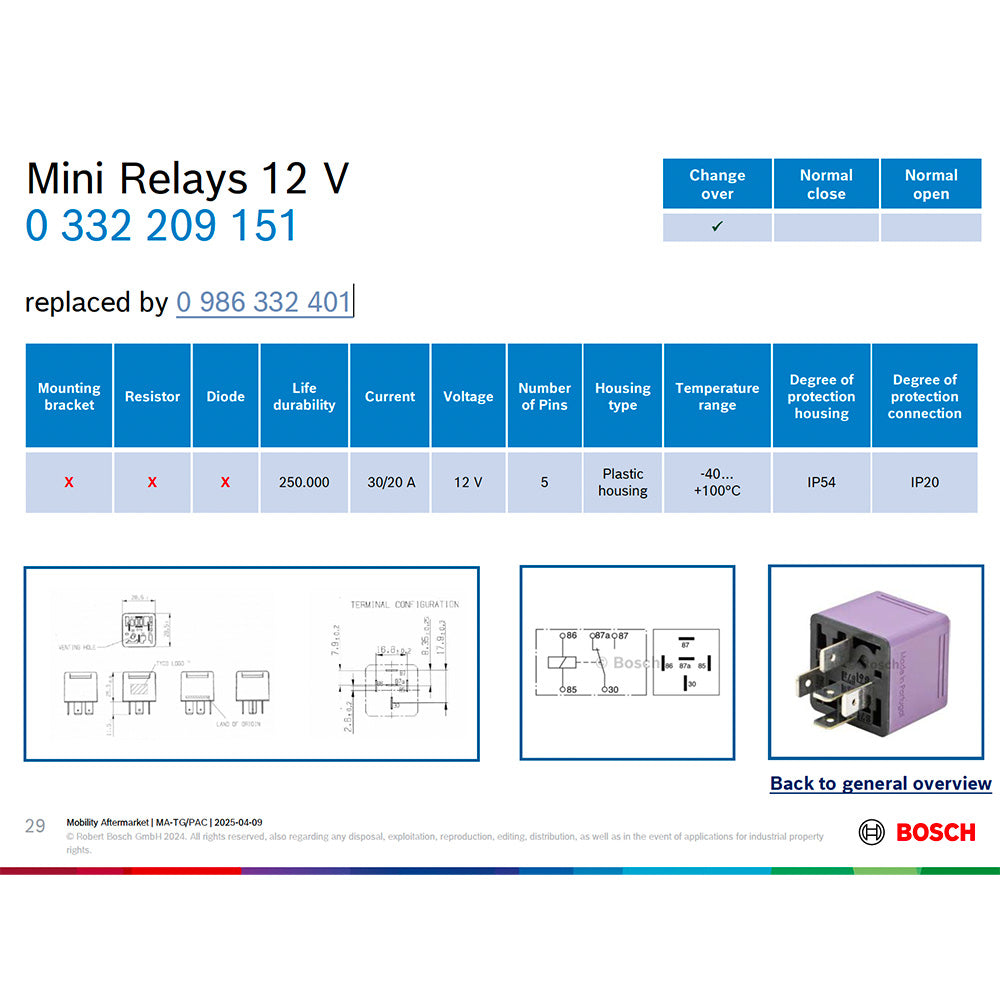

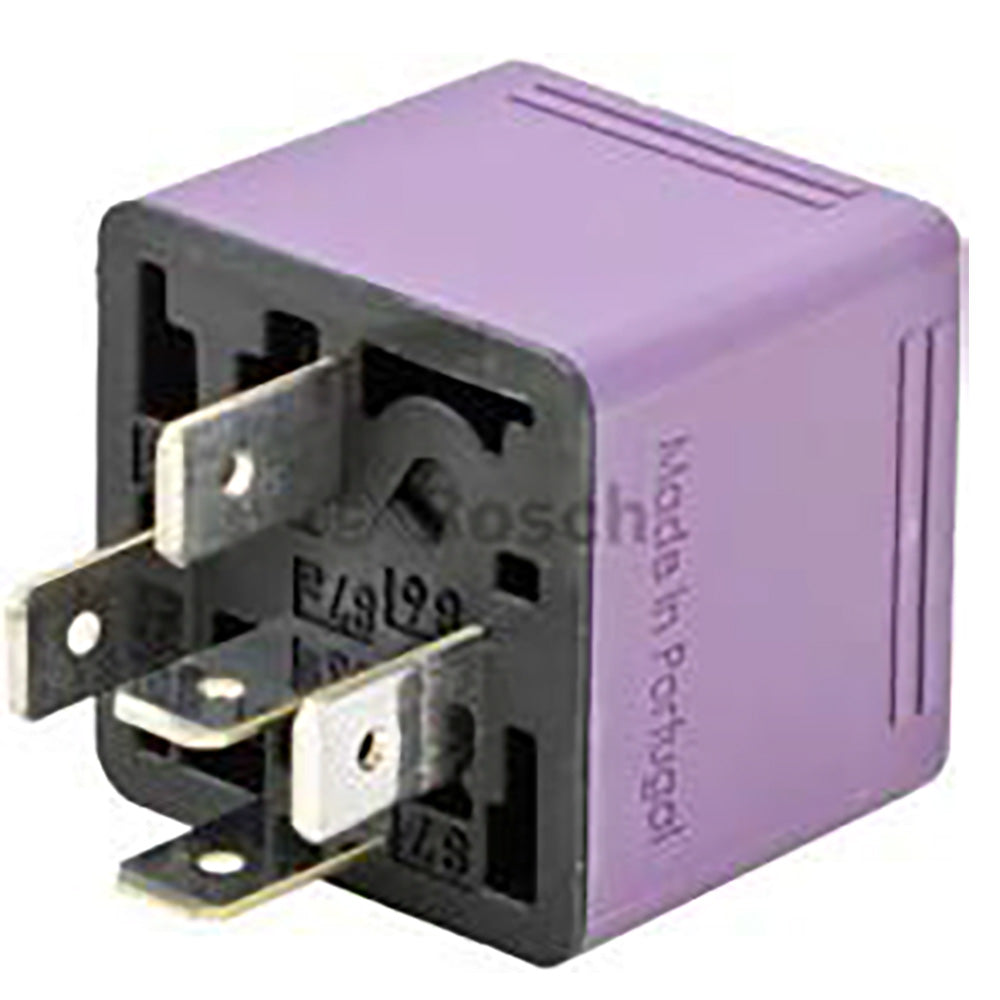

Bosch 0332209151 Change Over Mini Relay, 12 V, 30/20 A, 5 Pins



SPECIFICATIONS

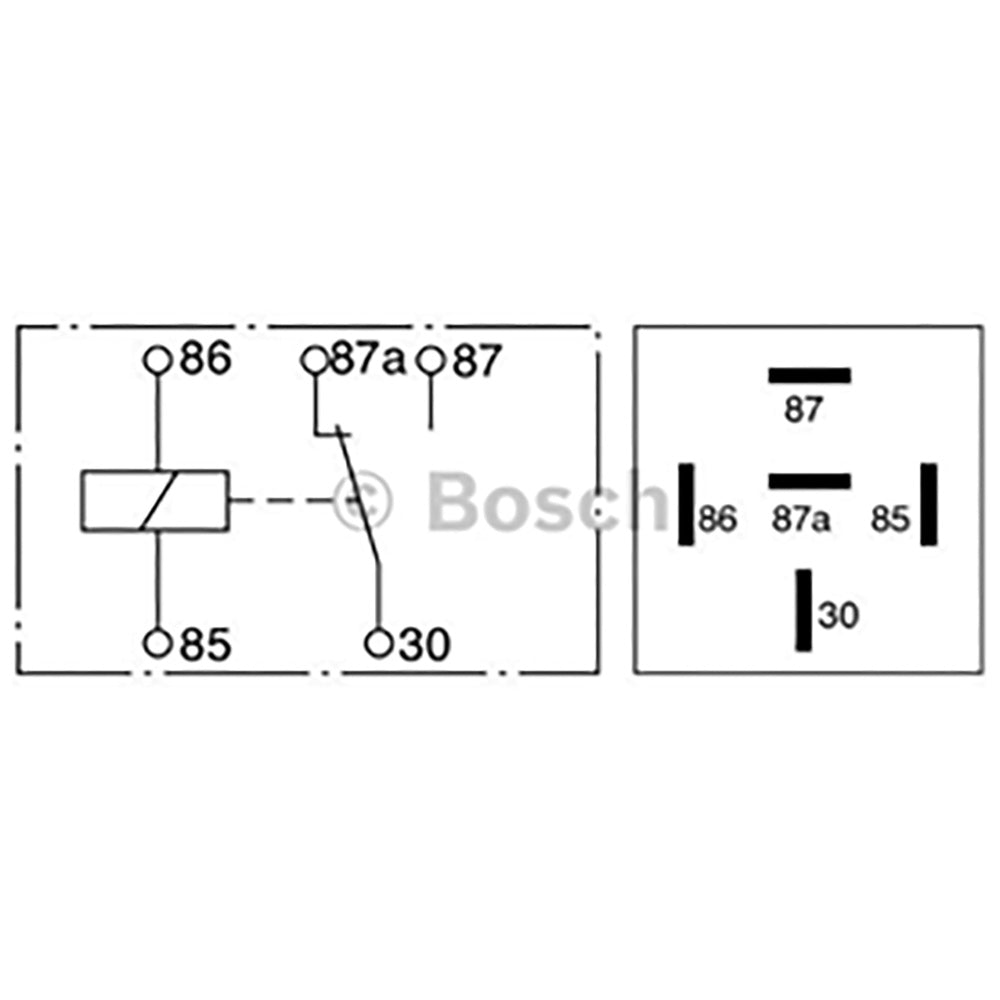

Type Change Over
Mounting Bracket N/A
Resistor N/A
Diode N/A
Life durability 250.000
Current 30/20 Amps
Voltage 12 V

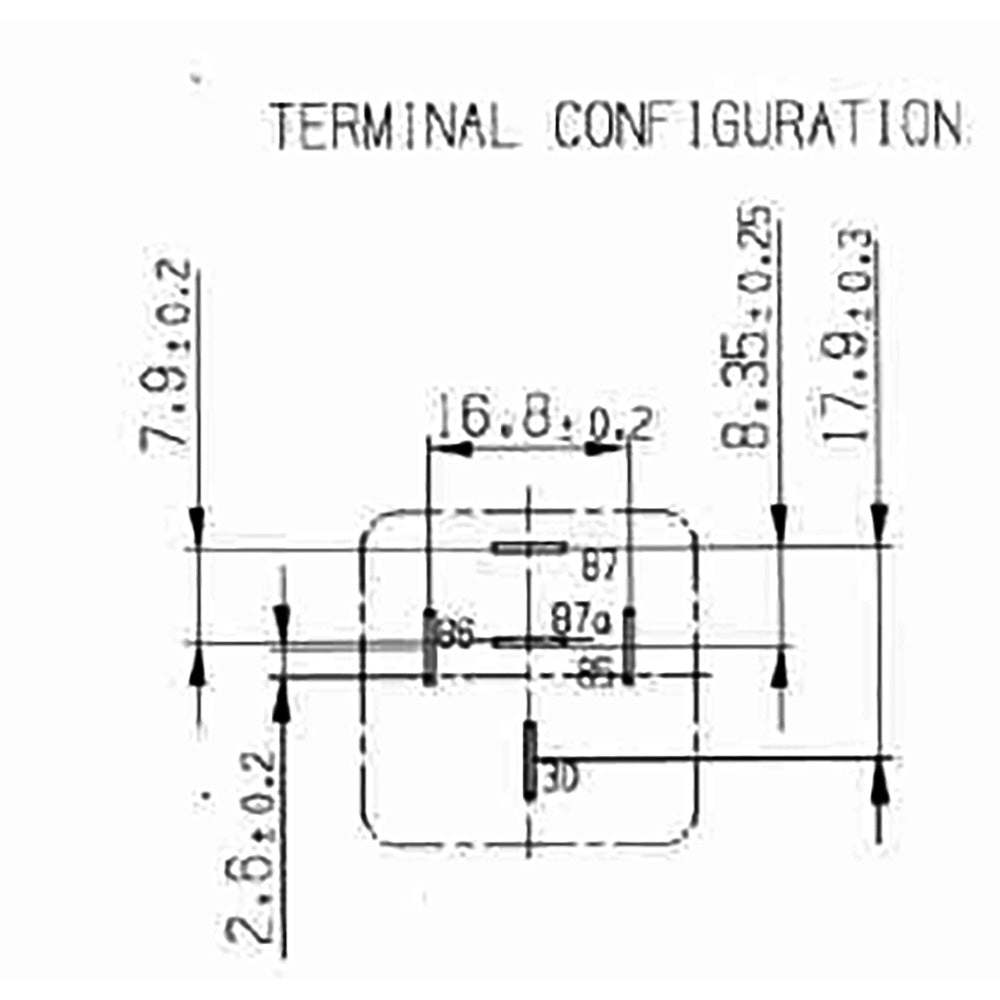

Number of Pins 5
Housing Plastic Housing
Temp Range -40 ~ +100 °C
Housing Protection IP54
Connection Protection IP20



OE NUMBER

AUDI: 443951254A

BMW: 34511154228

FERRARI: 30331161

FIAT: 40130106, 9940353

FORD: 06165402, 1519814, 6165402, 71BG10B926AA, 81DB15K235AA, 87DB15K235AA, JOHN DEERE: AL208597,  AL29657

MASERATI: 303311610

MERCEDES: 0005458305, 0015429519, 0018211847,  0035422705, A0005458305, A0015429519, A0018211847, A0035422705

PORSCHE: 99965701190

SIEMENS: V23134A0052A103

VOLVO: 20043732011, 873604,

VOLKS WAGEN: 443951254A
