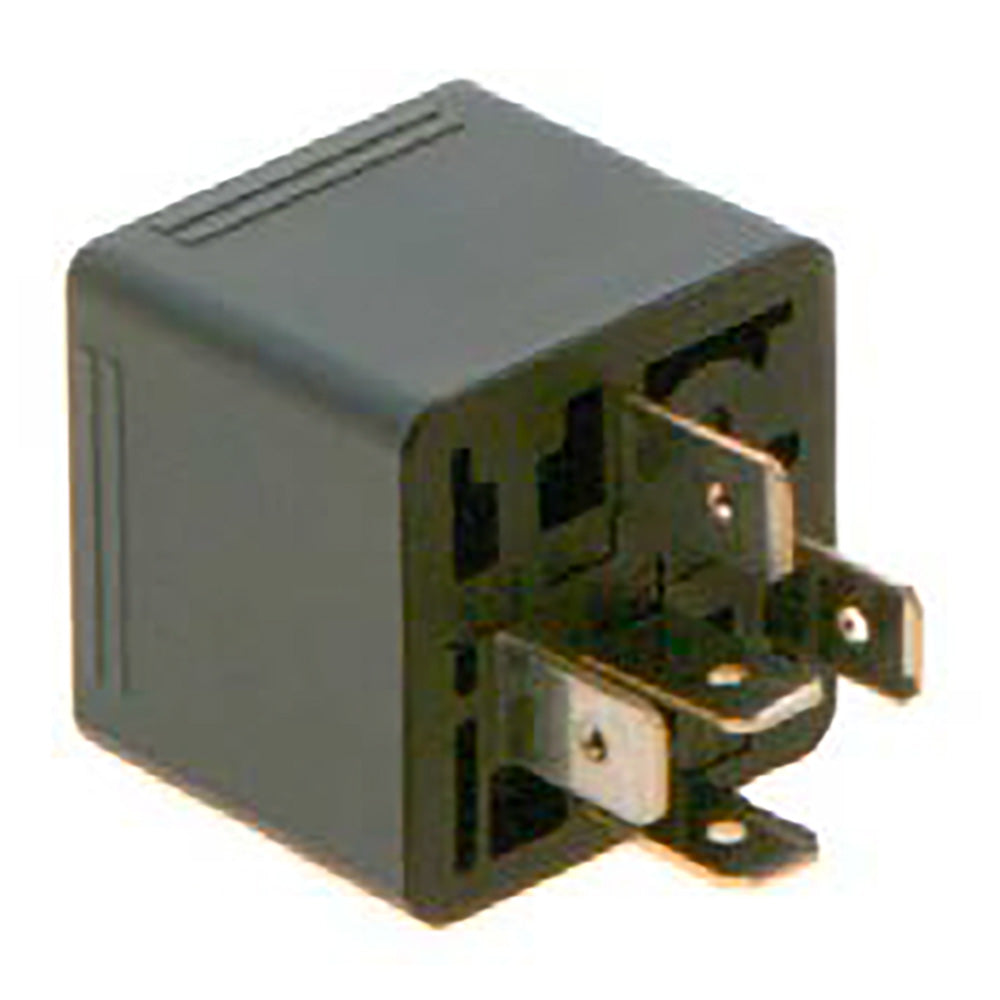

Bosch 0332209152 Change Over Mini Relay, Diode 12V 30/20A (SUPERSEDE TO 0986332053)

Bosch 0332209152 Change Over Mini Relay, Diode 12V 30/20A (SUPERSEDE TO 0986332053)

~~$13.99~~ $6.99

FREE delivery available*

285 products available.

- Add To Wishlist

SKU: BSH-0332209152 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

NOTE: 0332209152 IS SUPERSEDE TO 0986332053

FEATURES

The 0332209152 model is discontinued, replaced by 0986332053

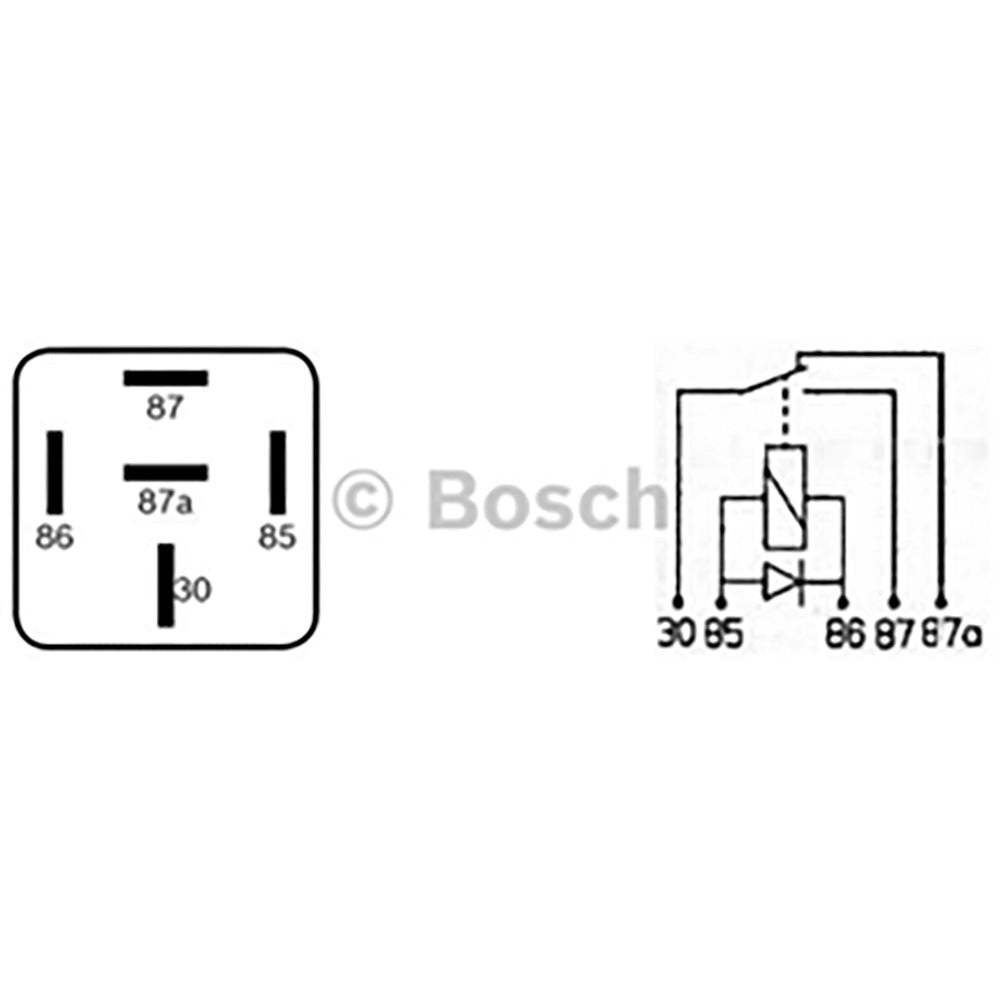

Change over relay, 12V, relay switch, five pole relay
Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 250.000 switching cycles
12V 30/20A relay: rated switching currents of up to 30 A - For high power
Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
Standardized connectors: enables quick and easy installation.
Housing: IP5K4, Terminal: IP20

DESCRIPTION

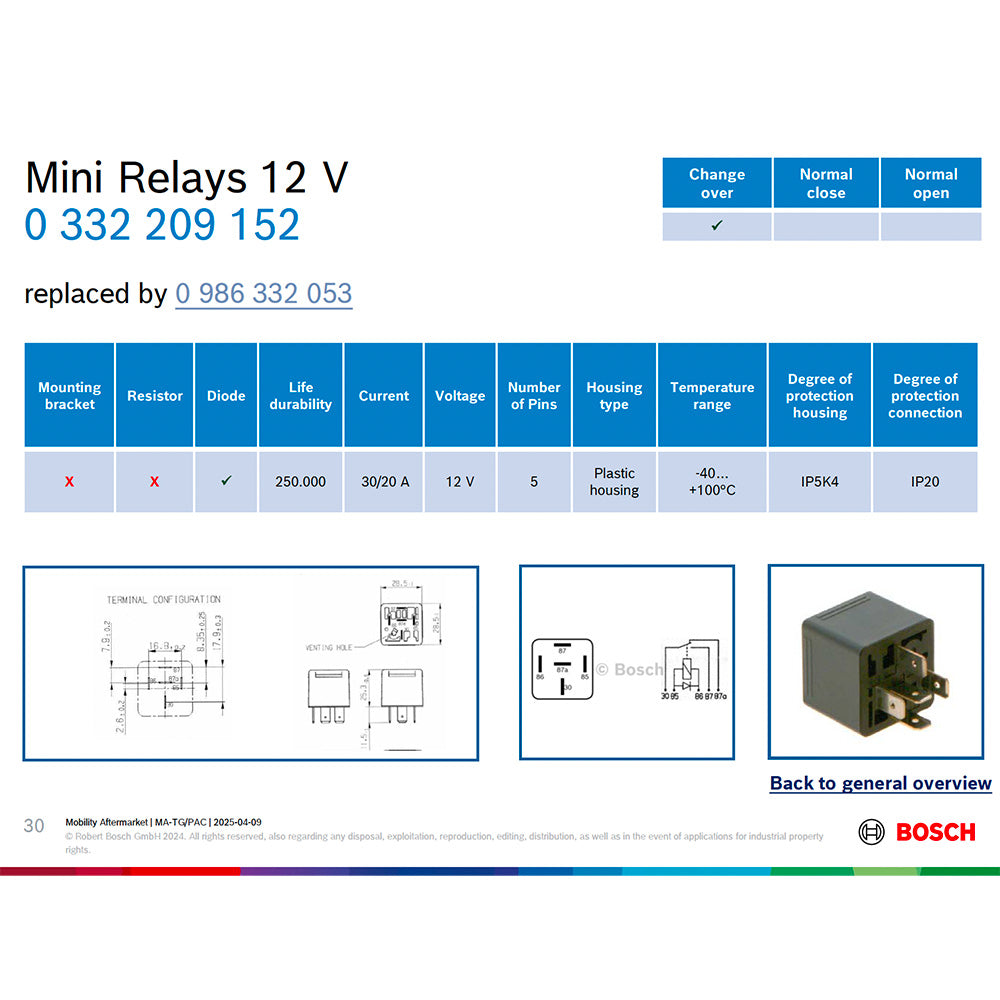

Bosch 0332209152 Mini Relay 12V 30/20A, IP5K4 (SUPERSEDE TO 0986332053)

SPECIFICATIONS

Type	Change Over
Mounting Bracket	N/A
Resistor	N/A
Diode	Yes
Life durability	250.000
Current	30/20 Amps
Voltage	12 V

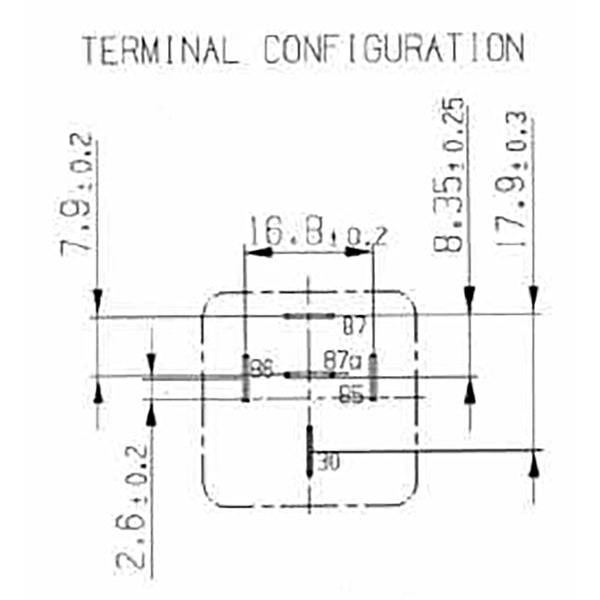

Number of Pins	5
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
Housing Protection	IP5K4
Connection Protection	IP20
