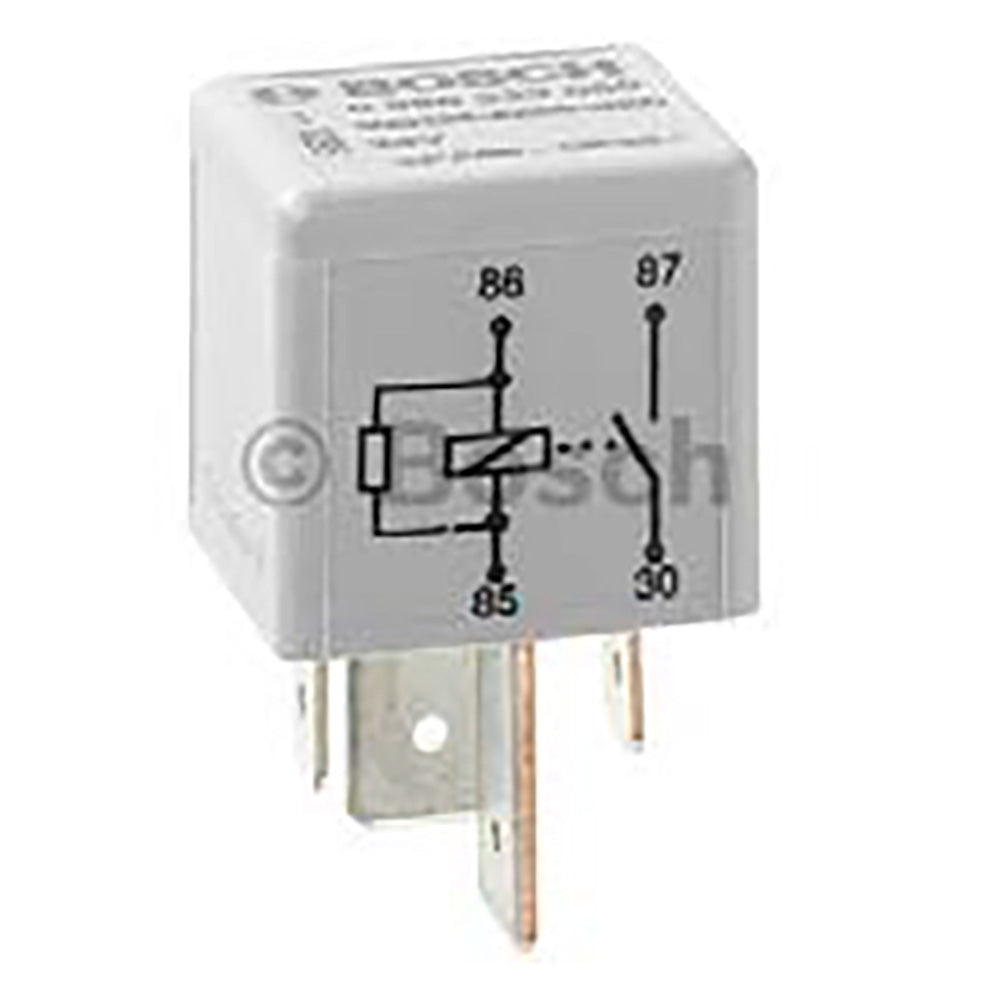

Bosch 0986332001 Normal Open Power Relay, Resistor, 12V, 70A

Bosch 0986332001 Normal Open Power Relay, Resistor, 12V, 70A

~~$13.99~~ $8.49

FREE delivery available*

- Add To Wishlist

SKU: BSH-0986332001 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

FEATURES

Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 100.000 switching cycles
12V relay: rated switching currents of up to 70 A - For high power
Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
Standardized connectors: enables quick and easy installation.

DESCRIPTION

Bosch 0986332001 Normal Open Power Relay, Resistor, 12V, 70A

SPECIFICATIONS

Type	Normal Open
Mounting Bracket	Plastic
Resistor	Yes
Diode	N/A
Life durability	100.000
Current	70 Amps
Voltage	12 V
Number of Pins	4
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
