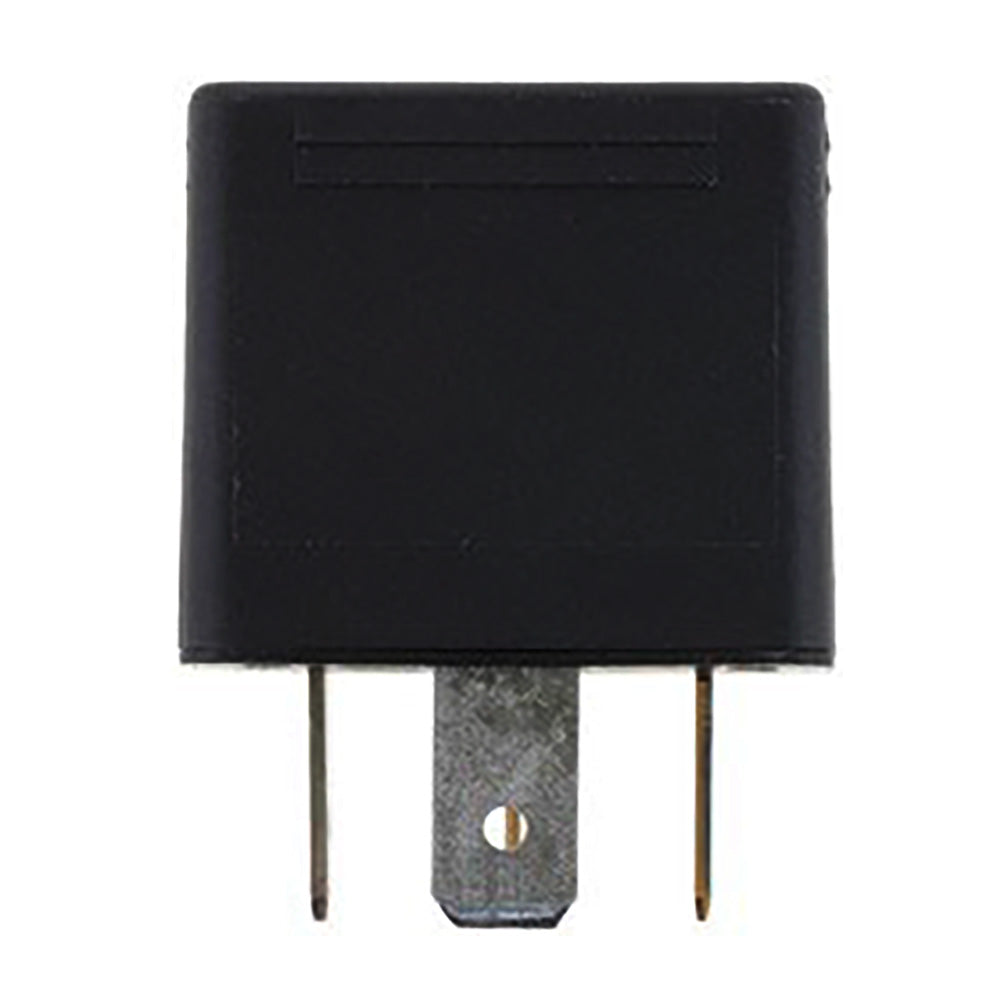

BOSCH 0986332211 Normal Open Mini Relay, Resistor, 4 Pins, 12 V, 30 A

BOSCH 0986332211 Normal Open Mini Relay, Resistor, 4 Pins, 12 V, 30 A

~~$14.99~~ $7.99

FREE delivery available*

24 products available.

- Add To Wishlist

SKU: BSH-0986332211 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

FEATURES

The 0986332211 model is replaced for 0332019456
4 Pins, 12 Volts, 30 Amp, Resistor available

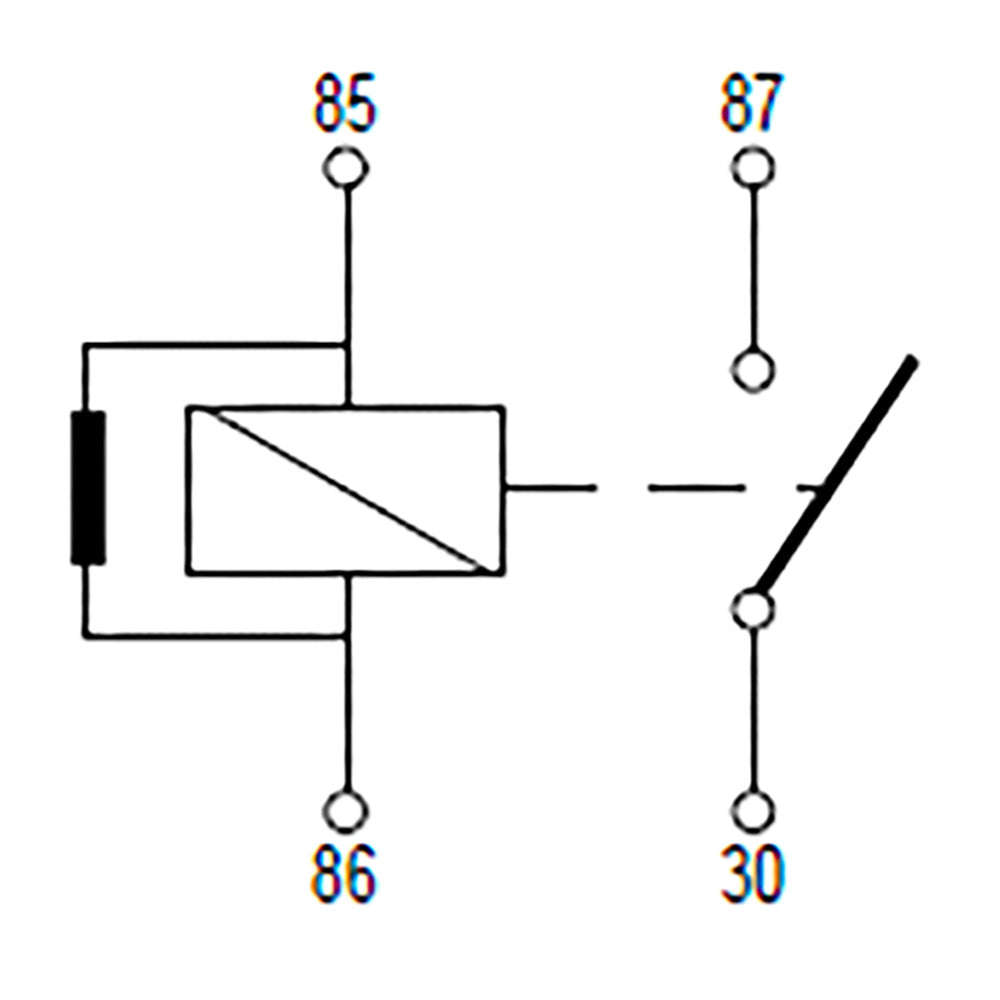

Normal Open Mini Relays
Long service life- made possible through meticulous processing and the use of high-quality materials allowing up to 250,000 switching cycles
Designed to withstand temperatures ranging from -40~ +100°C

DESCRIPTION

BOSCH 0986332211 Normal Open Mini Relay, Resistor, 4 Pins, 12 V, 30 A

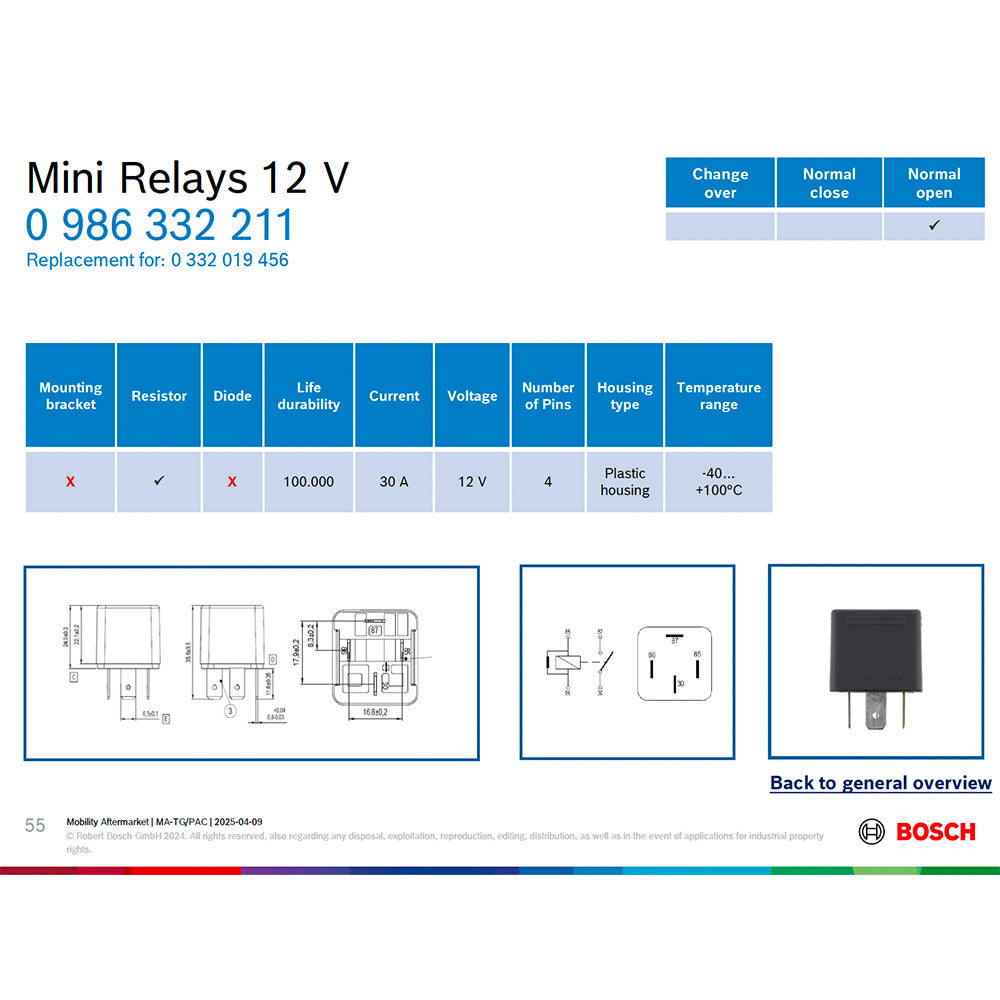

SPECIFICATIONS

Type	Normal Open
Mounting Bracket	N/A
Resistor	Yes
Diode	N/A
Life durability	100.000
Current	30 Amps
Voltage	12 V

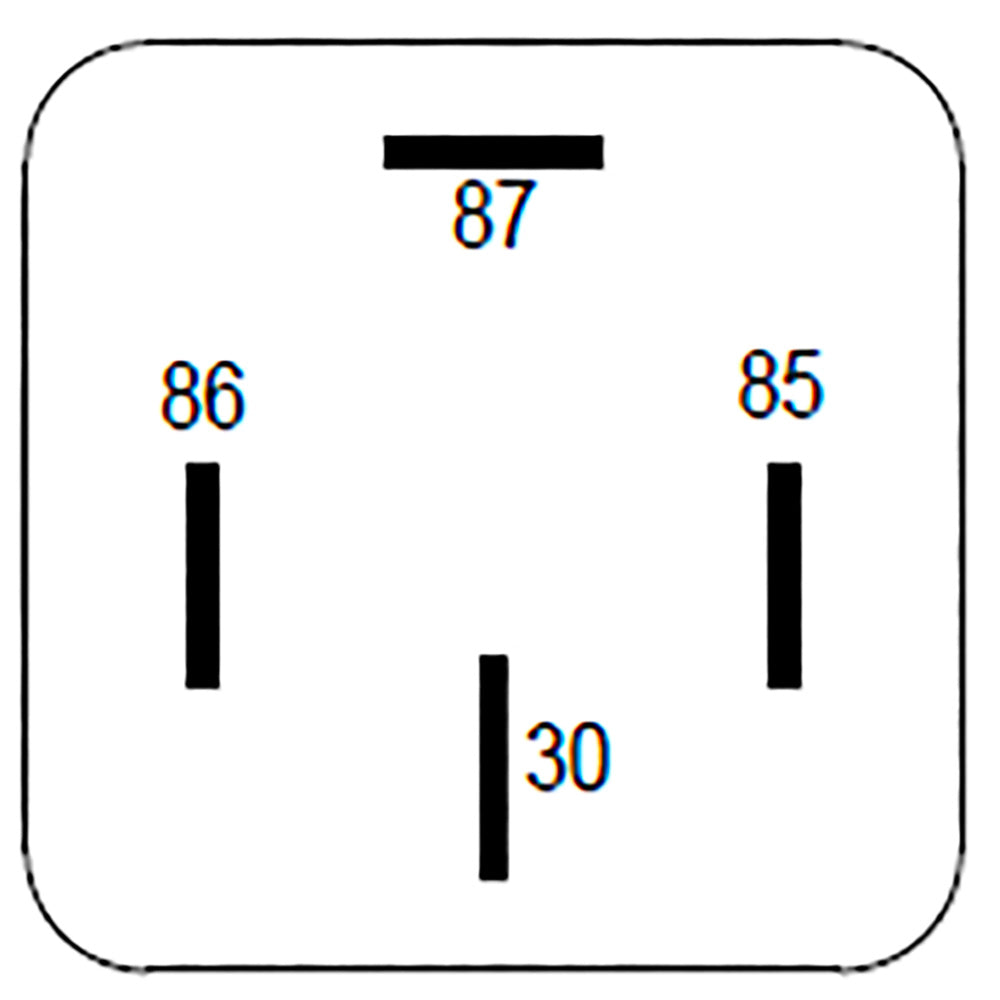

Number of Pins	4
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
