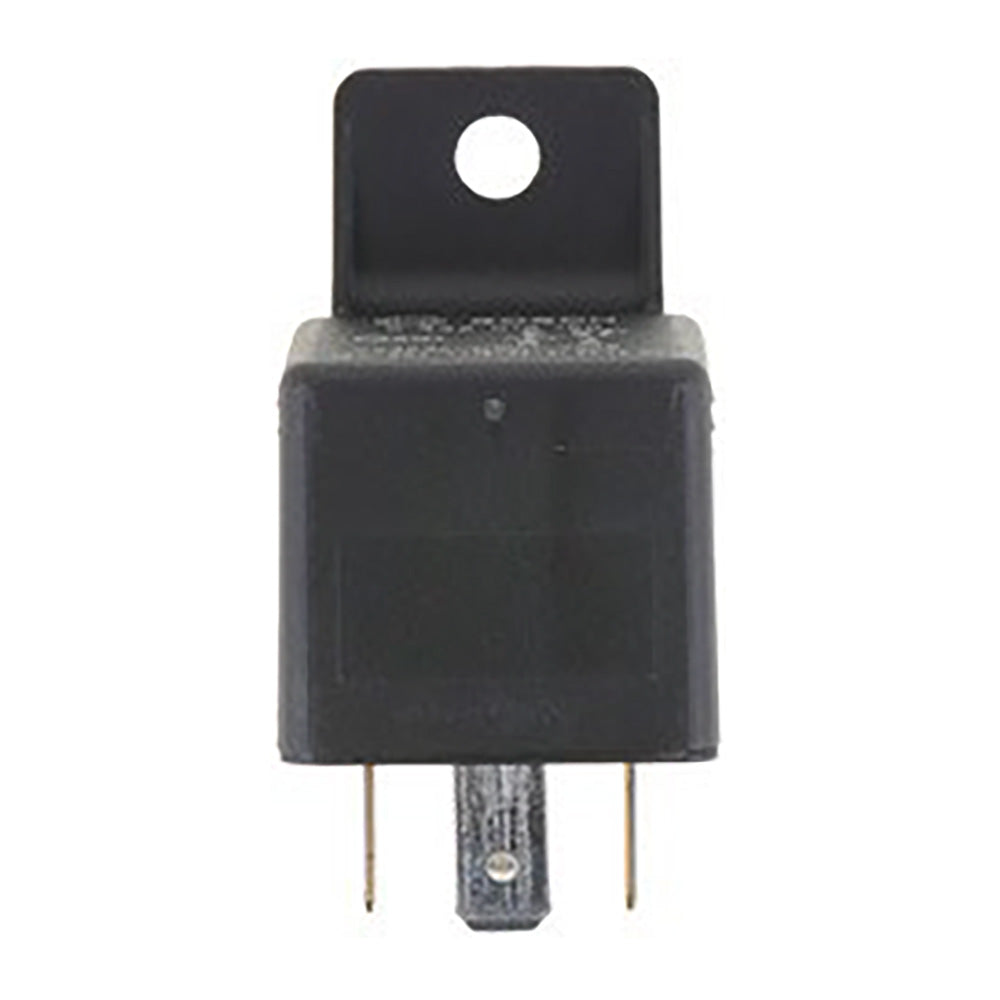

Bosch 0986332215 Changeover Mini Relay, 5 Pins, Resistor 12V, 30/20A

Bosch 0986332215 Changeover Mini Relay, 5 Pins, Resistor 12V, 30/20A

~~$16.99~~ $9.99

FREE delivery available*

226 products available.

- Add To Wishlist

SKU: BSH-0986332215 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

FEATURES

The 0986332215 model is replace for the 0332209138
ChangeOver relay, 12V, relay switch, 5 pole relay
Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 250 000 switching cycles
12V 30/20A relay
Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance

DESCRIPTION

Bosch 0986332215 Changeover Mini Relay, 5 Pins, Resistor 12V, 30/20A

SPECIFICATIONS

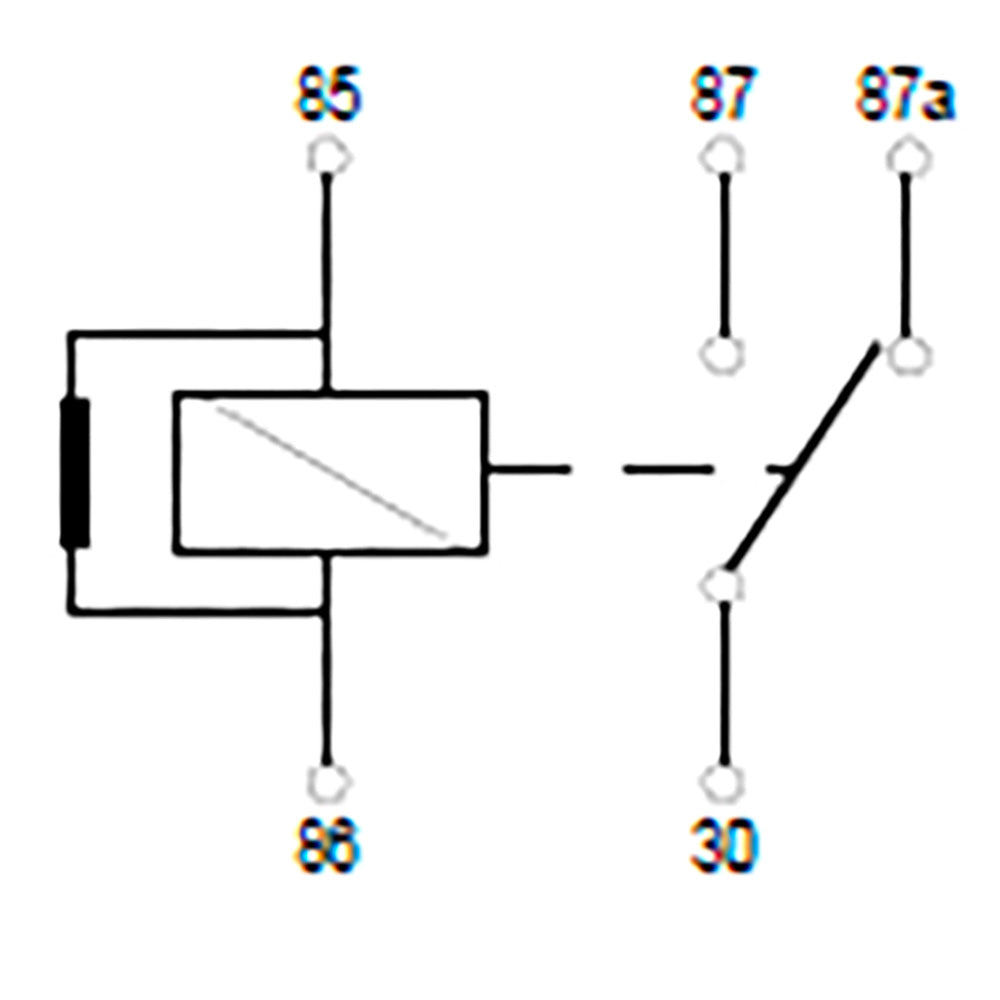

Type	Change Over
Mounting Bracket	Yes
Resistor	Yes
Diode	N/A
Life durability	100.000
Current	30/20 Amps
Voltage	12 V

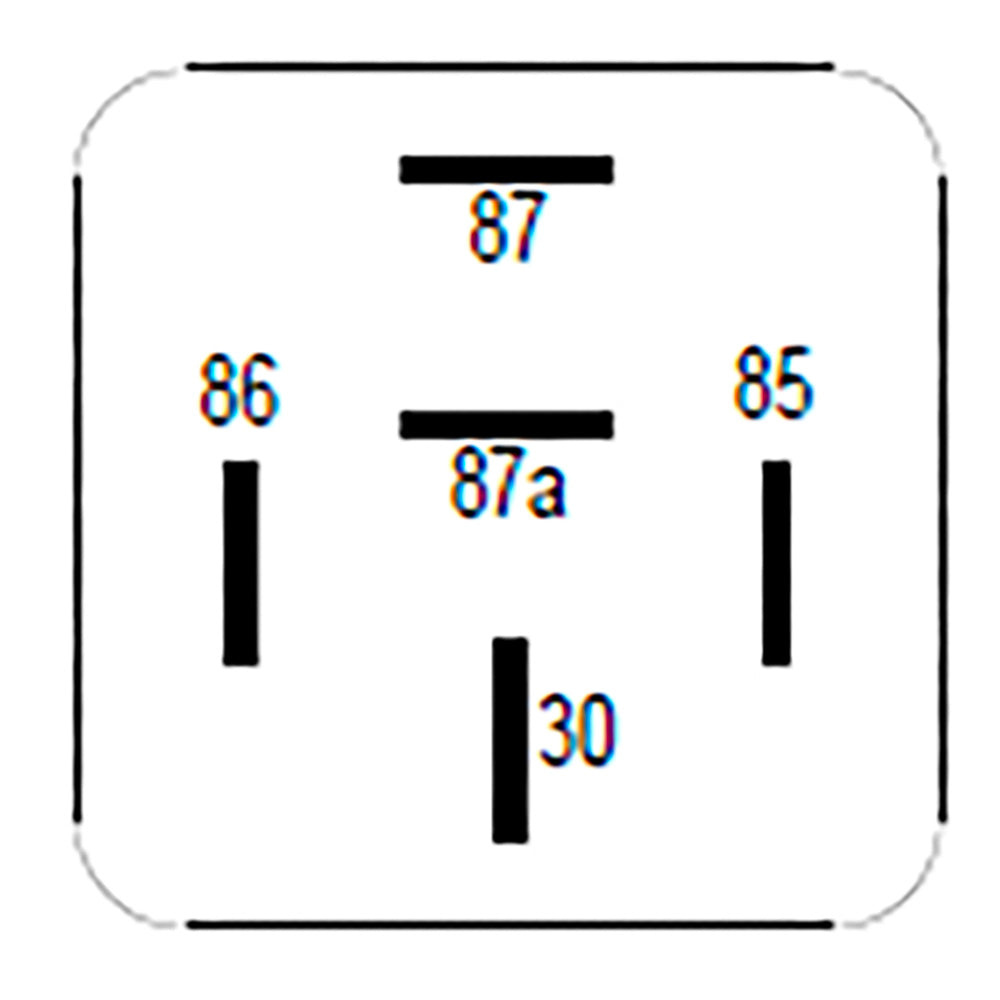

Number of Pins	5
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
