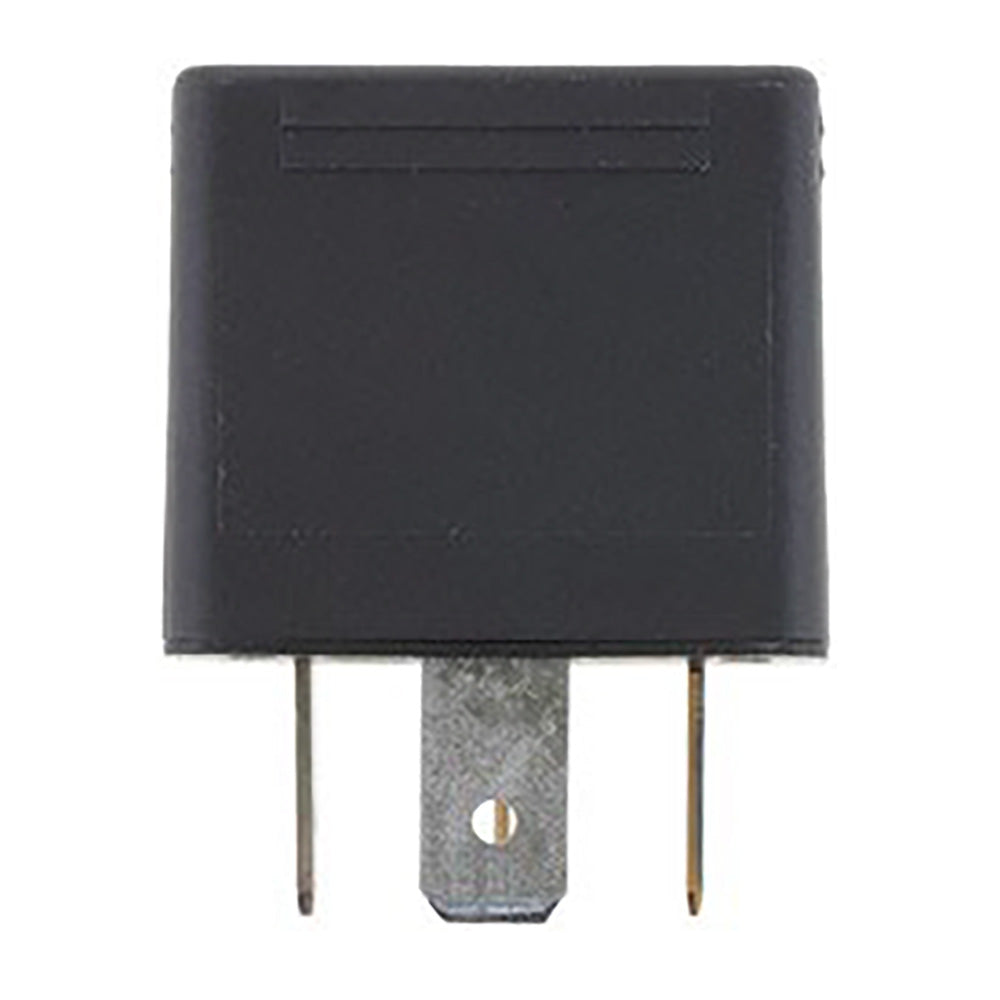

BOSCH 0986332404 Change Over Mini Relay, 5 Pins, 24 V, 20A/10A, Resistor

BOSCH 0986332404 Change Over Mini Relay, 5 Pins, 24 V, 20A/10A, Resistor

~~$7.99~~ $4.49

FREE delivery available*

31 products available.

- Add To Wishlist

SKU: BSH-0986332404 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

FEATURES

0986332404 is replace for the 0332209206 and 0332209216 discontinued models
Bosch has been producing relays for vehicles and other applications for more than 40 years - this vast development experience ensures continuous advancement in design features to deliver optimum performance
Bosch Mini Relays feature a compact design and are used in a wide range of vehicles to perform switching operations
Bosch relays incorporate only the highest quality materials for reliable, long-term performance and a 250,000 switching cycle capability
Engineered with high corrosion resistance to ensure long term reliability in harsh environments and conditions
5 pins, 24V, 20A, Resistor, IP5K4; Black

DESCRIPTION

BOSCH 0332209216 Change Over Mini Relay, 5 Pins, 24 V, 20A, Resistor (SUPERSEDE TO 0986332404)

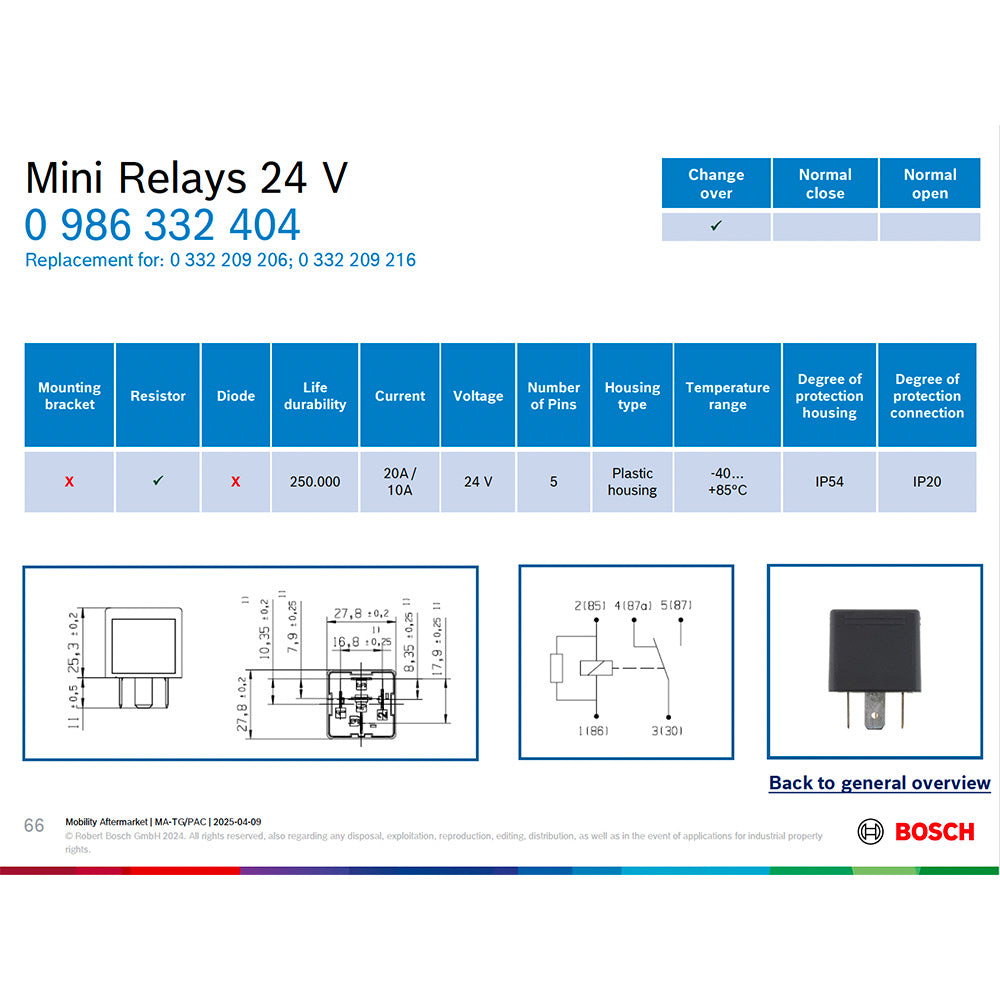

SPECIFICATIONS

Type	Change Over
Mounting Bracket	N/A
Resistor	Yes
Diode	N/A
Life durability	250.000
Current	20A / 10A
Voltage	24 V
Number of Pins	5
Housing	Plastic Housing
Temp Range	-40 ~ +85 °C
Housing Protection	IP54
Connection Protection	IP20
