FEATURES
- Normal Open Mini Relay, 4 Pins, 12V, 40/20 A, Diode
- Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 100.000 switching cycles
- Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
- Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance.
DESCRIPTION

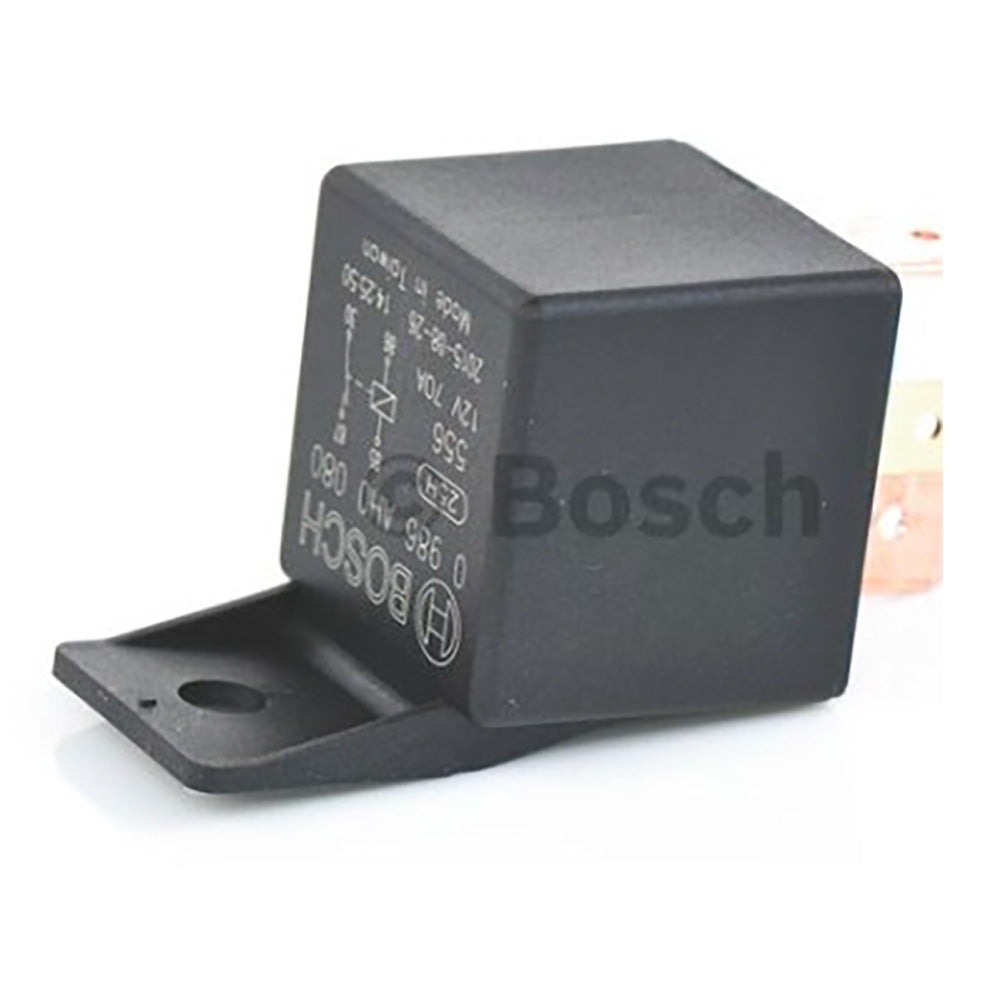

Bosch 0986AH0080 Normal Open Mini Relay, 4 Pins, 12V, 70A

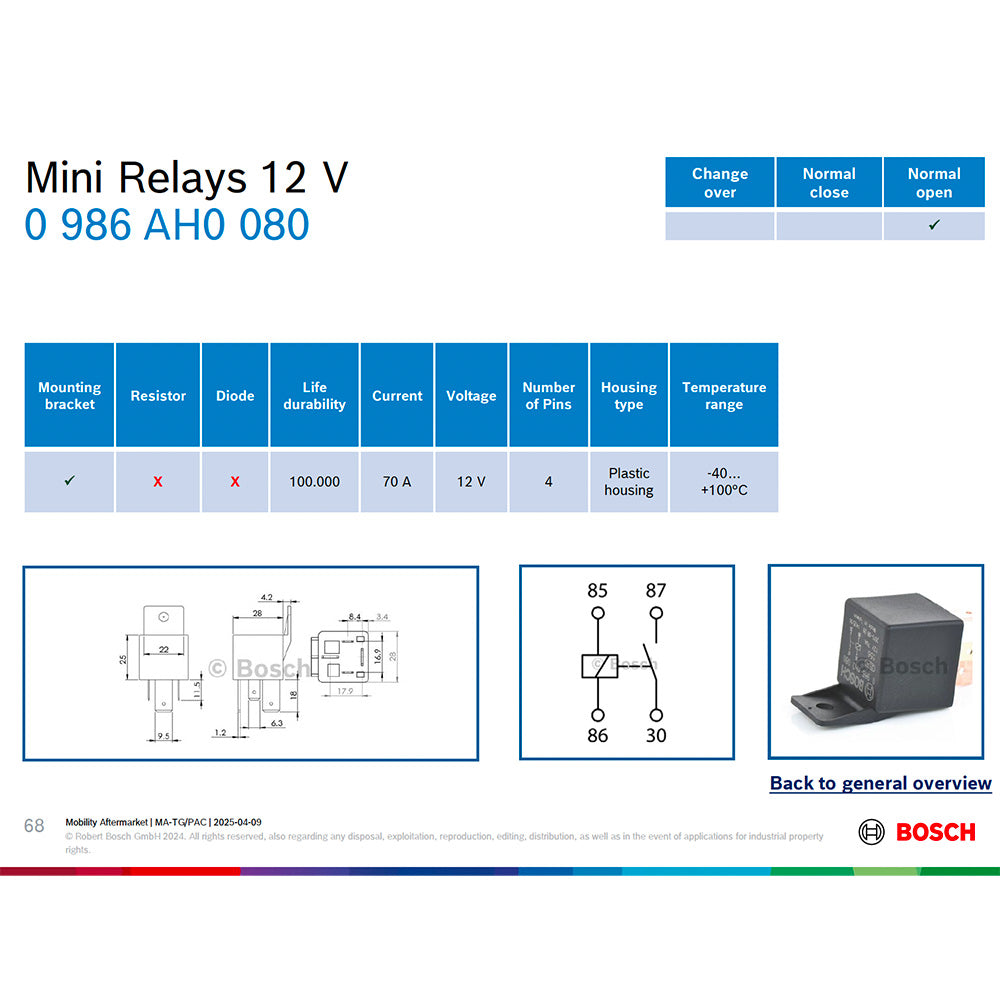

SPECIFICATIONS
| Type | Normal Open |
| Mounting Bracket | Yes |
| Resistor | N/A |
| Diode | Yes |
| Life durability | 100.000 |
| Current | 70 Amps |
| Voltage | 12 V |
| Number of Pins | 4 |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +100 °C |
OE NUMBER
HYUNDAI: 3916037110, 952302P010
TOYOTA: 9098702016, 9098702025, 9098702030, 9098704010
APPLICATION SUMMARY
Lexus HS250h (2010 - 2011)
Lexus LX570 (2008 - 2009, 2014 - 2019)
Toyota Land Cruiser (2003, 2006 - 2007, 2014 - 2019)
Lexus LX470 (2003 - 2007)
Lexus SC430 2010
