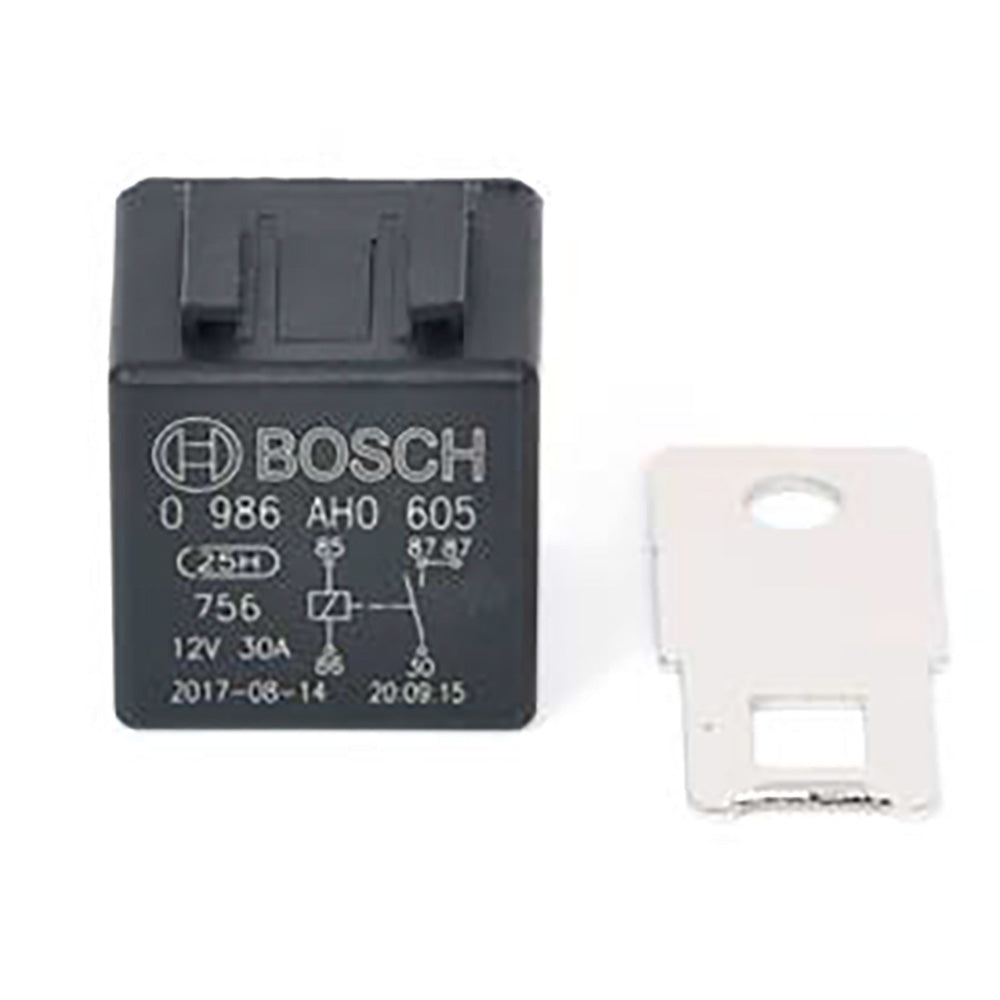

Bosch 0986AH0605 Normal Open Mini Relay, 5 Pins 12V 30A

Bosch 0986AH0605 Normal Open Mini Relay, 5 Pins 12V 30A

~~$12.99~~ $7.99

FREE delivery available*

- Add To Wishlist

SKU: BSH-0986AH0605 Category: Auto Parts, Products.

Delivery info

Delivery is generally
within 2-10 days, depending
on your location.

30 days returns

Return will not accepted if the product is opened or after use. All returns requests need to be within 30 days of when the original order was received. Original shipping costs will not be refunded.

Description
Technical Information
Resources

FEATURES

The 0986AH0602 Model is replacement for the 0332014125 model

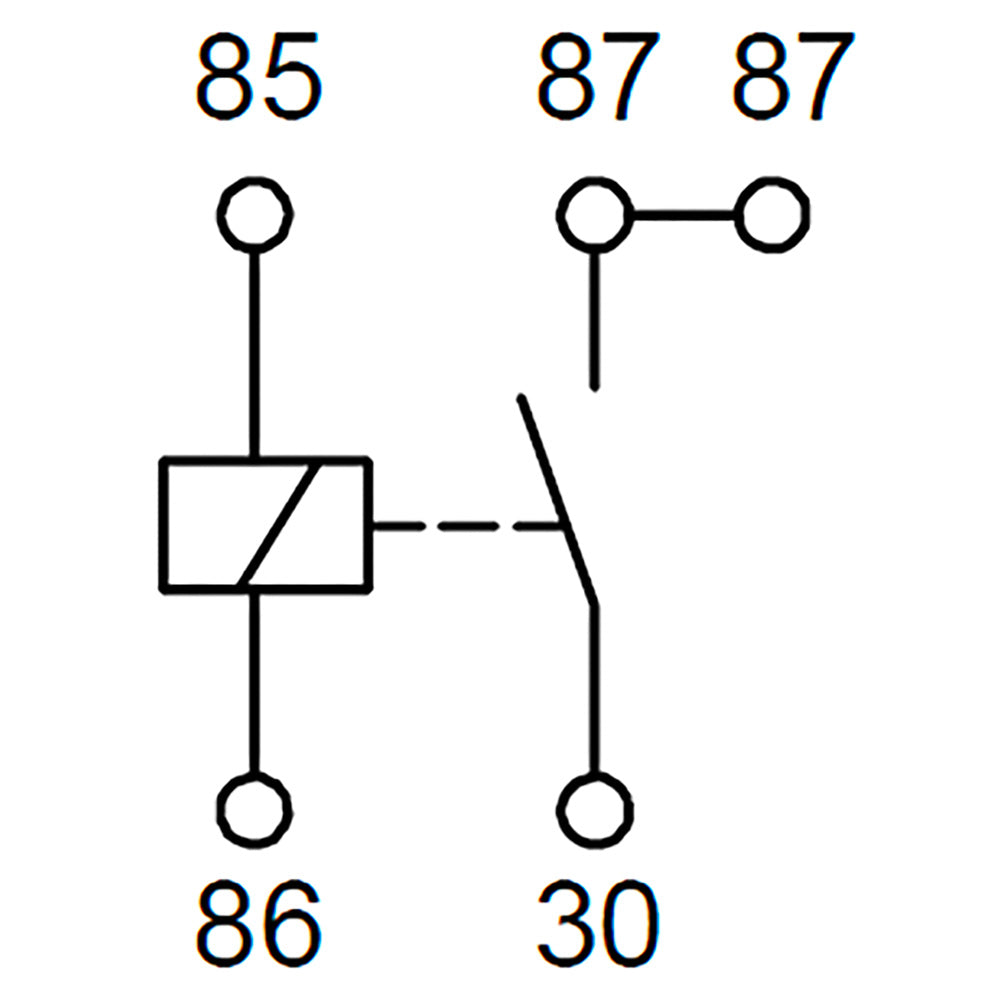

Normally open relay, 12V, 30 Amp relay switch, five pole relay, 2x87 Terminals
Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 100.000 switching cycles
Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +100 Degree C
Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance.

DESCRIPTION

Bosch 0986AH0602 Mini Relay, 5 Pins, 12V, 30A, 2x87

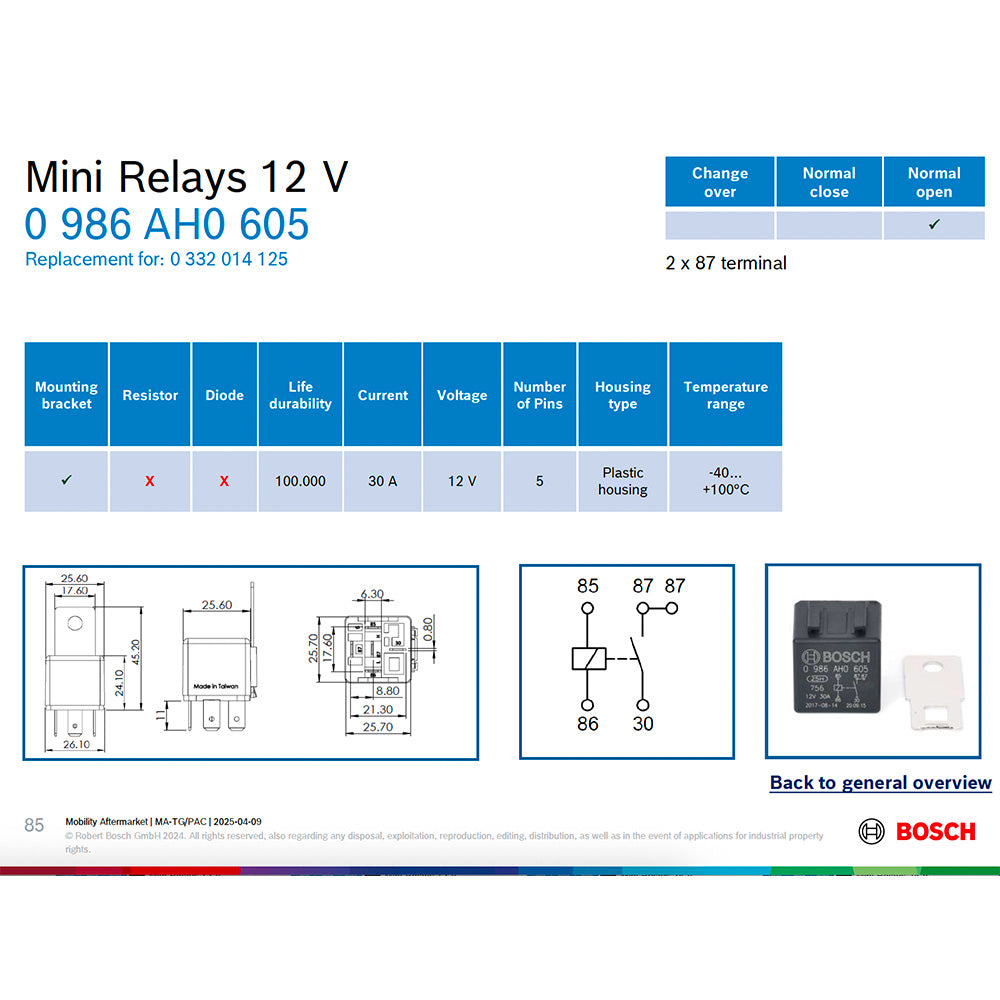

SPECIFICATIONS

Type	Normal Open
Mounting Bracket	Plastic
Resistor	N/A
Diode	N/A
Life durability	100.000
Current	30 Amps
Voltage	12 V
Number of Pins	5
Housing	Plastic Housing
Temp Range	-40 ~ +100 °C
