| Manufacturer | TE CONNECTIVITY |
|---|---|
| Product Category | Automotive Connectors |
| Product | Connector plug |
| Part Number | HD34-24-29PE |
| Series | HDP20 |
| Number of Positions | 29 Position |
| Gender | Male, Pin, Plug |
| Contact Gender | Male, Pin, Plug |
| Shell Size | 24 |
| Product Type | Automotive Connectors |
| Subcategory | Automotive Connectors |
| Tradename | HDP20 |

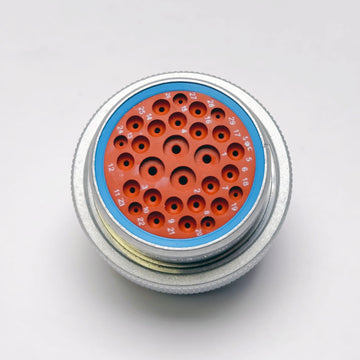

Use the matching DEUTSCH HD30 29-position female socket housing side housing to complete the mating side.
Use size 12, 16, and 20 male pin contacts with this DEUTSCH HD30 housing. Match contact size, wire gauge, and solid or stamped style before assembly.
Add the matching size 12, 16, and 20 female socket contacts for the mating connector side.
Select the matching shell-size accessories such as backshells, boots, gaskets, dust caps, rings, and washers where required.
Use the Deutsch contact release tool for the contact size shown. Use HDT-48-00 for Deutsch closed barrel solid contacts.
