| Description | Product Attribute |
|---|---|
| Manufacturer | TE Connectivity |
| Product Category | Automotive Connectors |
| Product | Connector Lock / Position Assurance |
| Product Description | Wedgelock for DTV02-18PA 18-pin male housing applications |
| Part Number | WV-18P |
| TE Internal Number | WV-18P |
| Connector Family | DEUTSCH DTV |
| Series | DEUTSCH DTV |
| Connector & Contact Retention Accessory Type | Secondary Lock |
| Number of Positions | 18 Position |
| Compatible Housing Side | DTV02-18PA male-terminal housing side |
| Compatible Housings | DTV02-18PA |
| Compatible Contacts | Size 16 male pin contacts |
| Mating Connector Side | DTV06-18SA |
| Mating Side Contacts | Size 16 female socket contacts |
| Primary Product Material | Plastic |
| Sealable | No |
| Application | Wire-to-Wire / Vehicle Electrical |
| Installation Note | Install after contacts are seated in the matching DTV02-18PA housing to lock the terminals in place. |

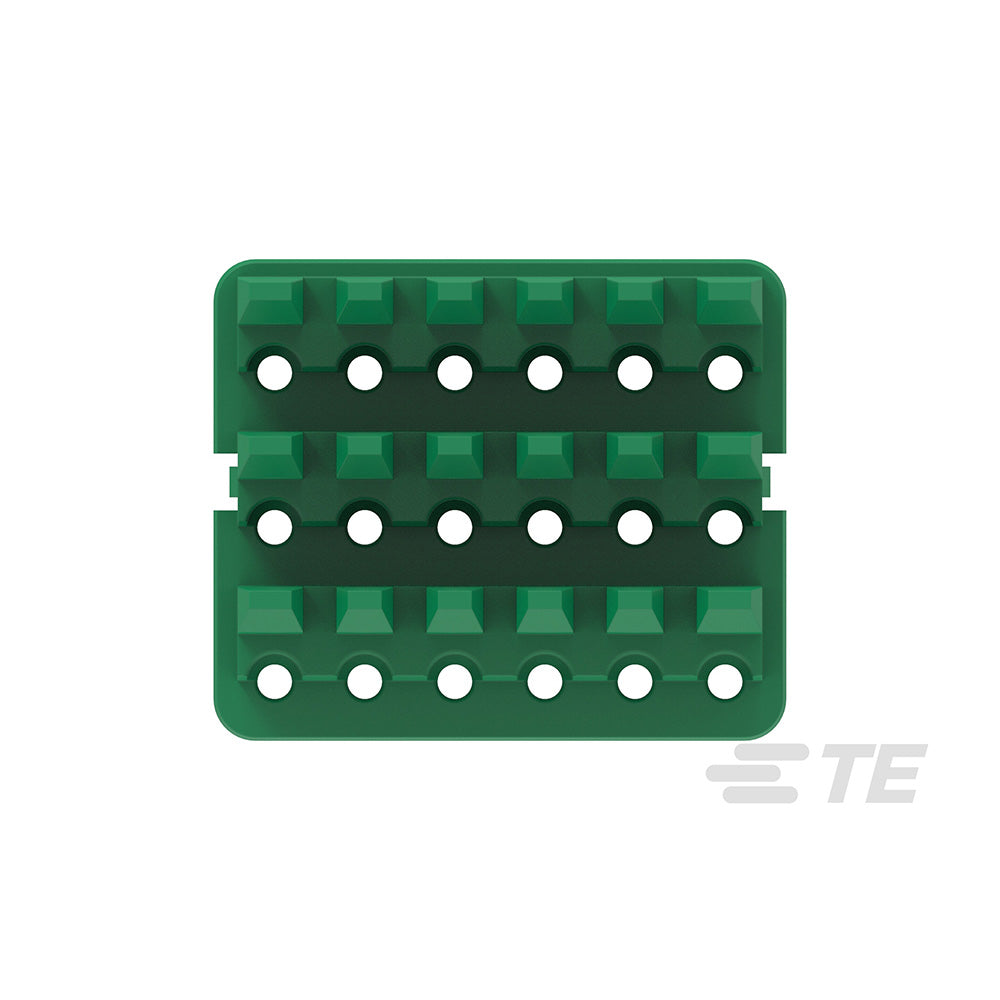

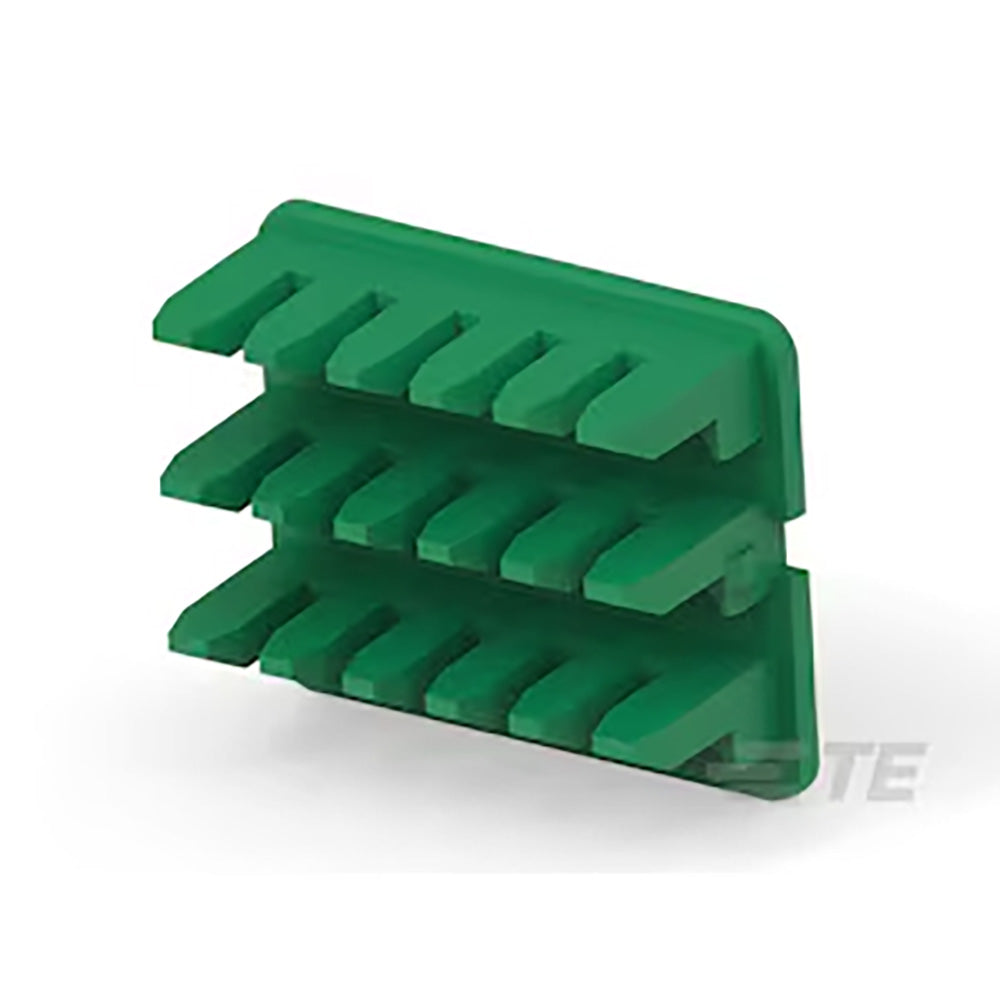

WV-18P is the wedgelock for DEUTSCH DTV 18-pin dtv male housing side housing applications. Add size 16 male pin contacts to complete this connector side.
Use size 16 male pin contacts with this side. Match the contact style and wire gauge before installing the wedgelock.
Use the matching dtv female housing side housing, its wedgelock, and size 16 female socket contacts to complete the mating connector side.
Use DT-RT1 for Deutsch wedgelock removal where applicable. Use HDT-48-00 for closed barrel Deutsch contacts.
