Compatible DT04-2P male housing
Deutsch DT04-2P DT 2-Pin Male Connector
SKU: TEC-DT04-2P
$0.99
7750 available
View item
| Manufacturer | TE Connectivity |
|---|---|
| Manufacturer Part Number | DT06-2S-SDT-CE28 |
| TE Internal Number | 2286003-3 |
| Product Category | Automotive Connectors |
| Product | Housing for Female Terminals |
| Connector & Housing Type | Housing for Female Terminals |
| Connector System | Wire-to-Wire |
| Connector Shape | Rectangular |
| Series | DEUTSCH DT |
| Number of Positions | 2 Position |
| Number of Rows | 1 Row |
| Centerline / Pitch | 4.5 mm [.175 in] |
| Sealable | Yes |
| IP Rating | IP67 |
| Connector Modification | Enhanced Seal Retention |
| Connector Seal Code | E Seal |
| Terminal Position Assurance | Yes |
| Compatible Wedgelocks | W2S-SDT-12V or W2S-SDT-24 |
| Compatible Contacts | Size 16 female socket contacts |
| Mating Housing | DT04-2P and compatible DT04-2P variants |
| Contact Current Rating (Max) | 13 A |
| Operating Voltage | 42 VDC |
| Nominal Voltage Architecture | 12 V / 24 V / 48 V |
| Primary Product Color | Natural |
| Housing Material | PEI (Polyetherimide) |
| Cable Exit Angle | 180 degrees |
| Connector Mounting Type | Cable Mount / Free-Hanging |
| Product Length | 15 mm [.6 in] |
| Product Width | 15.77 mm [.62 in] |
| Connector Height | 31.6 mm [1.244 in] |
| Operating Temperature Range | -55 to 125 C [-67 to 257 F] |
| UL Flammability Rating | UL 94V-0 |
| Serviceable | Yes |
Mating Connector
Use the matching DT 2-pin male housing, plus its wedgelock and pin contacts, to complete the mating side.
Wedgelock
Use the matching secondary lock with this DT 2-pin female housing.

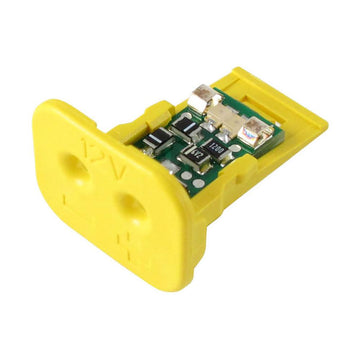

24V LED signal detector wedgelock
Use W2S-SDT-24 for 24 volt detector applications with this DT06-2S-SDT-CE28 housing.
Accessories
Related seal plugs, boot colors, mounting clips, gaskets, backshells, and service accessories for this DT 2-pin housing.
Sockets
Use female socket contacts with this DT 2-pin housing. Match the contact to the wire gauge. Do not use pin contacts on this side.
Tools
Use DT-RT1 for DT series contact removal. Use HDT-48-00 for closed barrel solid contacts.
